Installation [11/2016 - ]: Procedure

1. Install the No. 2 ECM bracket to the ECM with the 2 screws.

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

1. Install the ECM bracket to the ECM with the 2 screws.

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

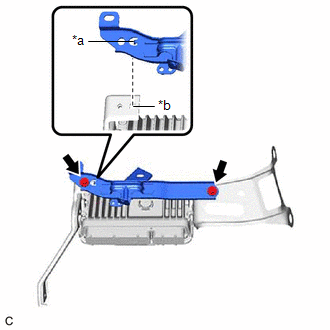

1. Align the protrusion of the wire harness clamp bracket with the hole of the ECM bracket and install the wire harness clamp bracket with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   *b	Hole

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

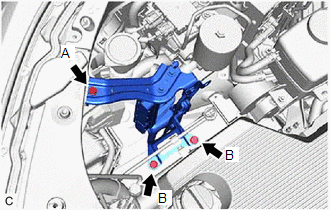

1. Install the ECM with the 3 bolts.

   Bolt (A)

   Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

   Bolt (B)

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

   NOTE:

   If the ECM has been struck or dropped, replace it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the clamp to install the suction hose sub-assembly.
3. Engage the 2 clamps to install the engine room main wire.
4. Engage the clamp to install the engine wire.

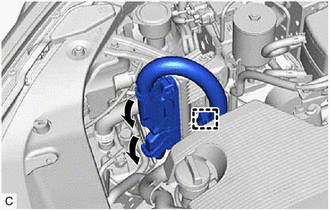

5. Connect the 2 ECM connectors and lower the 2 levers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water or other foreign matter.
   • Be sure to securely connect the ECM connectors.

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 70

Refer to PROCEDURE - Step 71

Refer to PRECAUTION [11/2016 - ]
