Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22

  2. DRAIN ENGINE COOLANT (for Engine)

    See step  2

  3. REMOVE FRONT WHEEL RH
  4. SEPARATE FRONT FENDER LINER RH

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 3

  6. REMOVE ECM

    Refer to REMOVAL [02/2014 - 11/2016]

  7. REMOVE WATER INLET

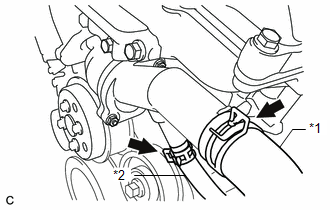

    1. Slide the 2 clips and disconnect the No. 2 radiator hose and oil cooler pipe.
      GTY452541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Radiator Hose
      *2 Oil Cooler Pipe
    2. Remove the 2 nuts and water inlet.
      GTY437278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE THERMOSTAT
    1. Remove the thermostat from the water inlet housing.
    2. Remove the gasket from the thermostat.
