Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE FRONT WHEEL RH
  2. SEPARATE FRONT FENDER LINER RH
    1. Remove the bolt, 4 screws, 4 clips and separate the front fender liner RH.
  3. REMOVE FRONT FENDER APRON SEAL RH

    See step   [02/2014 - 11/2015] , or see step   [11/2015 - 11/2016]

  4. REMOVE V-RIBBED BELT

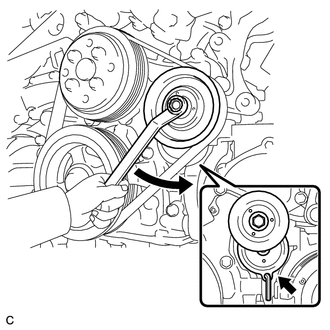

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      GTY299139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While turning the V-ribbed belt tensioner assembly counterclockwise, align its holes, and then insert a 5 mm hexagon wrench into the holes to secure the V-ribbed belt tensioner assembly.
    3. Remove the V-ribbed belt.
