Removal [02/2014 - ]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  2. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
  5. REMOVE BRAKE PEDAL RETURN SPRING
    1. Remove the brake pedal return spring from the instrument panel reinforcement assembly and brake pedal support assembly.
      GTY435008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE PUSH ROD PIN
    1. Remove the clip and push rod pin.
      GTY434979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

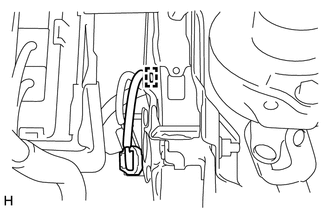

    1. Disengage the wire harness clamp.
      GTY452840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and separate the brake pedal support assembly from the instrument panel reinforcement assembly.
      GTY429709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

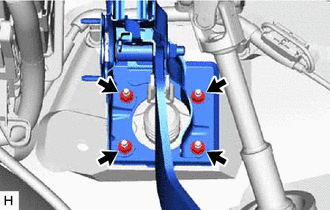

    3. Remove the 4 nuts and brake pedal support assembly.
      GTY452833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad from the brake pedal support assembly.
