Removal [02/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [02/2014 - 11/2016] , or refer to PRECAUTION [11/2016 - ]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [02/2014 - 11/2016] , or refer to REMOVAL [11/2016 - ]
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 11
- REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 15
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
- REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

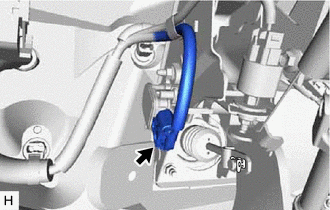

- Disconnect the connector from the brake pedal stroke sensor assembly.

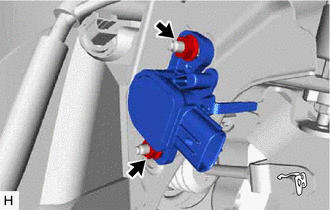

- Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.
HINT:
- Do not drop the brake pedal stroke sensor assembly.
- If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
- Disconnect the connector from the brake pedal stroke sensor assembly.
