Removal [02/2014 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2015] , or refer to REMOVAL [11/2015 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  2. REMOVE SLIDING ROOF SIDE GARNISH LH

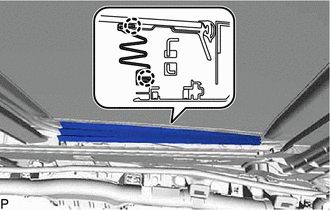

    1. Disengage the 2 claws to remove the sliding roof side garnish LH.
      GTY450957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SLIDING ROOF SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY

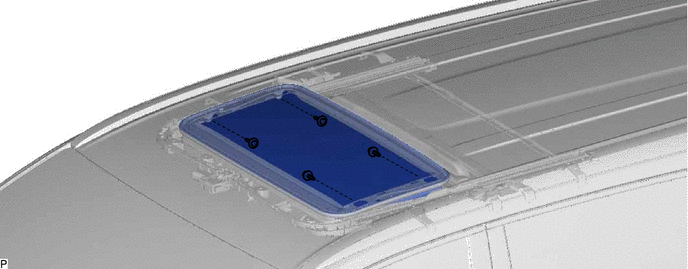

    1. Using a T25 "TORX" socket wrench, remove the 4 screws and sliding roof glass sub-assembly.
      GTY426370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent the sliding roof glass sub-assembly and sliding roof drive gear sub-assembly from being displaced, fully close the sliding roof glass sub-assembly (sliding roof drive cable sub-assembly), and then remove the sliding roof glass sub-assembly.

  5. REMOVE SLIDING ROOF WEATHERSTRIP
    1. Remove the sliding roof weatherstrip from the sliding roof panel sub-assembly.
  6. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [02/2014 - 11/2016] , or refer to PRECAUTION [11/2016 - ]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [02/2014 - 11/2016] , or refer to PRECAUTION [11/2016 - ]

  7. DISCONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [02/2014 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]

  8. DISCONNECT SLIDING ROOF DRAIN HOSE
    1. for Clamp Type:
      GTY426369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

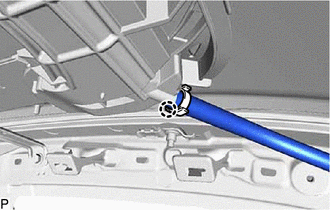

      1. Disengage the claw and disconnect the sliding roof drain hose.

        HINT:

        Use the same procedure for the other 3 sliding roof drain hoses.

    2. for Clip Type:
      GTY426367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

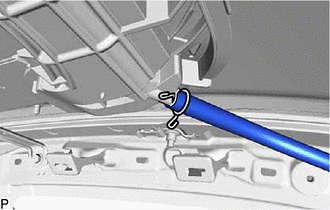

      1. Expand the clip and disconnect the sliding roof drain hose.

        HINT:

        Use the same procedure for the other 3 sliding roof drain hoses.

  9. REMOVE NO. 1 ROOF SIDE AIR DUCT LH

    Refer to PROCEDURE - Step 6

  10. REMOVE NO. 1 ROOF SIDE AIR DUCT RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  12. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE TELEVISION BRACKET (w/ Rear Seat Entertainment System)

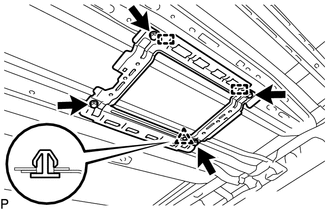

    1. Remove the 4 bolts.
      GTY450396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and 2 guides to remove the television bracket.
  14. REMOVE SLIDING ROOF HOUSING ASSEMBLY
    GTY426366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

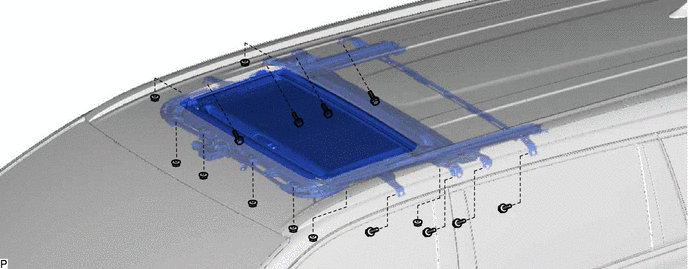

    1. Remove the 8 bolts, 8 nuts and sliding roof housing assembly.
