Removal [02/2014 - ]: Procedure

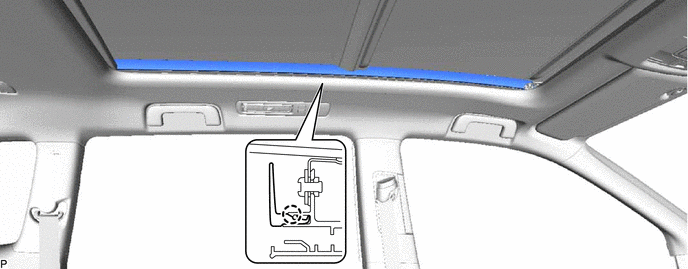

  1. REMOVE SLIDING ROOF SIDE GARNISH LH
    1. Fully open the sunshade trim sub-assembly.
    2. Disengage the claw to remove the sliding roof side garnish LH.
      GTY426885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SLIDING ROOF SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

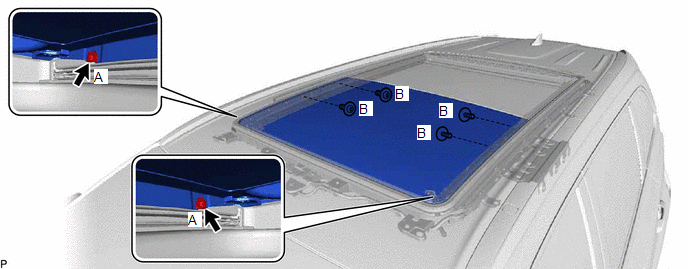

  3. REMOVE NO. 1 SLIDING ROOF GLASS SUB-ASSEMBLY
    1. Open the No. 1 sliding roof glass sub-assembly to a position where the 2 screws (A) can be removed.
      GTY434528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T25 "TORX" socket wrench, remove the 2 screws (A).
    3. Fully close the No. 1 sliding roof glass sub-assembly.
    4. Using a T25 "TORX" socket wrench, remove the 4 screws (B) and No. 1 sliding roof glass sub-assembly.
      NOTE:

      To prevent the No. 1 sliding roof glass sub-assembly and sliding roof drive gear assembly from being displaced, fully close the No. 1 sliding roof glass sub-assembly, and then remove the No. 1 sliding roof glass sub-assembly.

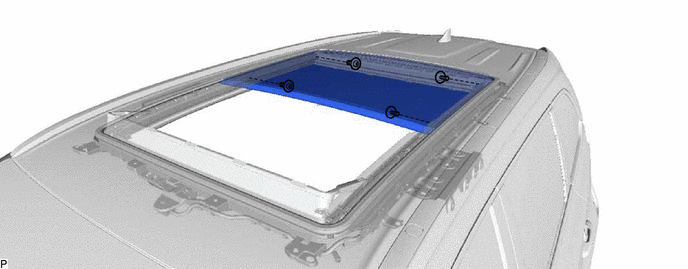

  4. REMOVE NO. 2 SLIDING ROOF GLASS SUB-ASSEMBLY
    1. Using a T25 "TORX" socket wrench, remove the 4 screws and No. 2 sliding roof glass sub-assembly.
      GTY426884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2015] , or refer to REMOVAL [11/2015 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  6. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [02/2014 - 11/2016] , or refer to PRECAUTION [11/2016 - ]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [02/2014 - 11/2016] , or refer to PRECAUTION [11/2016 - ]

  7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [02/2014 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]

  8. REMOVE NO. 1 ROOF SIDE AIR DUCT LH

    Refer to PROCEDURE - Step 7

  9. REMOVE NO. 1 ROOF SIDE AIR DUCT RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  11. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  12. DISCONNECT SLIDING ROOF DRAIN HOSE

    See step  8

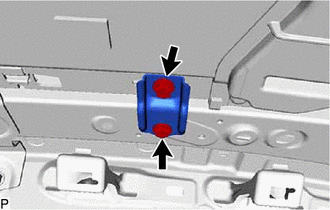

  13. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Remove the 2 bolts and front sliding roof housing mounting bracket LH.
      GTY451065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the front side and rear side.

  14. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

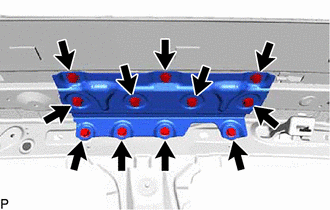

  15. REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Remove the 11 bolts and center sliding roof housing mounting bracket LH.
      GTY423808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

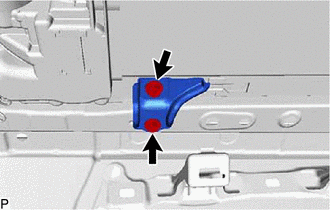

  17. REMOVE REAR SLIDING ROOF HOUSING MOUNTING BRACKET LH
    1. Remove the 2 bolts and rear sliding roof housing mounting bracket LH.
      GTY423806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

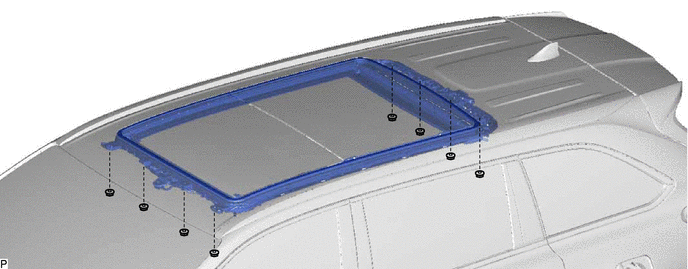

  19. REMOVE SLIDING ROOF HOUSING ASSEMBLY
    1. Remove the 8 nuts and sliding roof housing assembly.
      GTY423807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
