Reassembly [02/2014 - ]: Procedure

  1. INSTALL UPPER CONSOLE DOOR SUB-ASSEMBLY

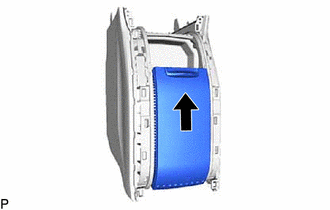

    1. Slide the upper console door sub-assembly in the direction indicated by the arrow shown in the illustration to install the upper console door sub-assembly.
      GTY423237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

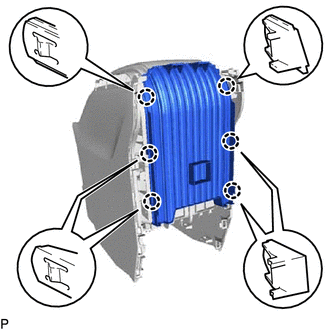

    2. Engage the 6 claws to install the No. 2 console mounting retainer.
      GTY423240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

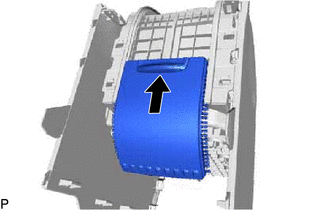

    1. Slide the console compartment door sub-assembly in the direction indicated by the arrow shown in the illustration to install the console compartment door sub-assembly.
      GTY423238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws to install the No. 1 console mounting retainer.

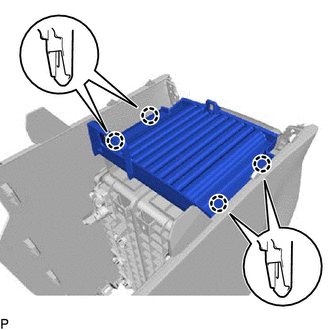

      GTY423246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 POWER OUTLET SOCKET COVER

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 2

  4. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 3

  5. INSTALL REAR CONSOLE BOX WIRE
    1. Engage each clamp.

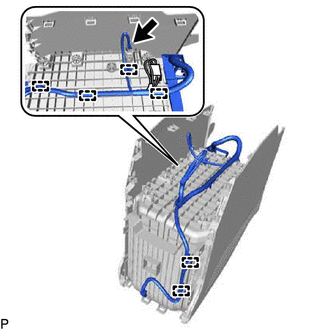

      GTY450275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector to install the rear console box wire.
  6. INSTALL NO. 1 TRASH BOX RETAINER SUPPORT

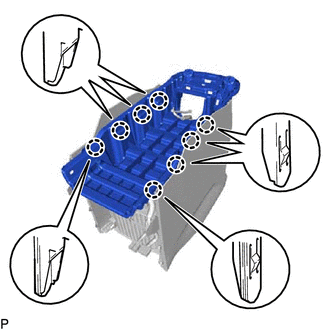

    1. Engage the 8 claws.
      GTY423241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

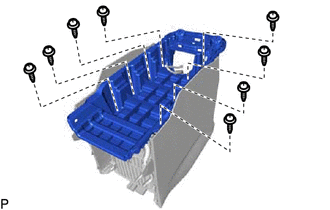

    2. Install the No. 1 trash box retainer support with the 8 screws.
      GTY423268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

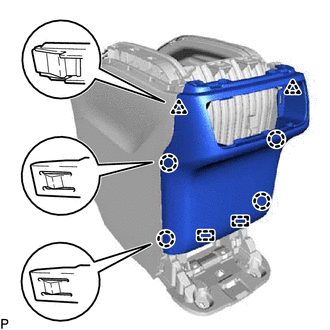

    1. Engage the 2 guides, 4 claws and 2 clips to install the console rear end panel sub-assembly.
      GTY423269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL REAR CONSOLE COVER

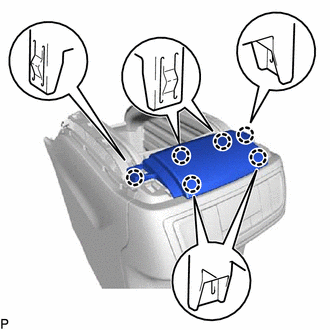

    1. Engage the 6 claws to install the rear console cover.
      GTY450281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 CONSOLE BOX HOLE COVER

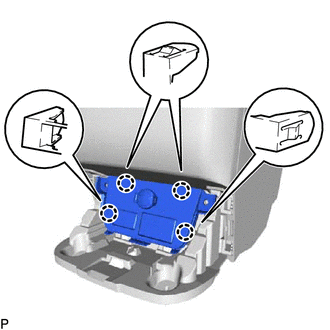

    1. Connect each connector.
    2. Engage the 4 claws.
      GTY450280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the No. 2 console box hole cover with the 2 screws.

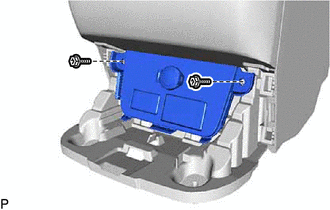

      GTY423267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
