Installation [02/2014 - ]: Procedure

  1. INSTALL NO. 2 AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connector.
    2. Engage the 7 claws to install the No. 2 air conditioning control assembly.

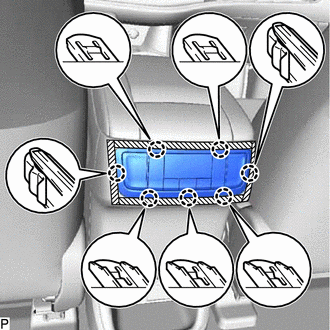

      GTY455538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    3. Remove the protective tape.
