Disassembly [02/2014 - ]: Procedure

  1. REMOVE NO. 2 CONSOLE BOX HOLE COVER
    1. Remove the 2 screws.
      GTY423267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws.
      GTY450280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector to remove the No. 2 console box hole cover.
  2. REMOVE REAR CONSOLE COVER

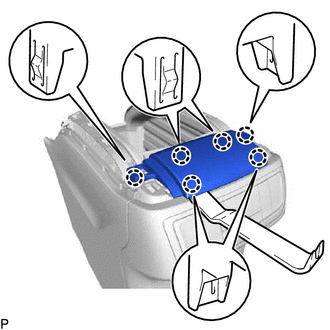

    1. Using a moulding remover, disengage the 6 claws to remove the rear console cover.
      GTY423265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Disengage the 4 claws, 2 clips and 2 guides to remove the console rear end panel sub-assembly.
      GTY423269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 TRASH BOX RETAINER SUPPORT
    1. Remove the 8 screws.
      GTY423268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 8 claws and remove the No. 1 trash box retainer support.
      GTY423241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR CONSOLE BOX WIRE
    1. Disconnect the connector.
      GTY450275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage each clamp and remove the rear console box wire.
  7. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

    Refer to PROCEDURE - Step 21 , or refer to PROCEDURE - Step 21

  8. REMOVE NO. 1 POWER OUTLET SOCKET COVER

    Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22

  9. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

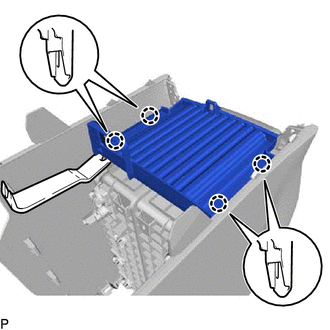

    1. Using a moulding remover, disengage the 4 claws and remove the No. 1 console mounting retainer.
      GTY423244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

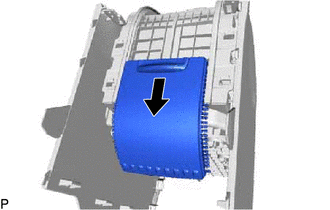

    2. Slide the console compartment door sub-assembly in the direction indicated by the arrow shown in the illustration to remove the console compartment door sub-assembly.
      GTY450274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE UPPER CONSOLE DOOR SUB-ASSEMBLY

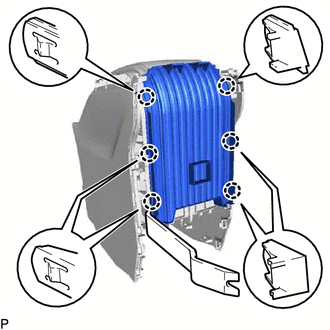

    1. Using a moulding remover, disengage the 6 claws and remove the No. 2 console mounting retainer.
      GTY423239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

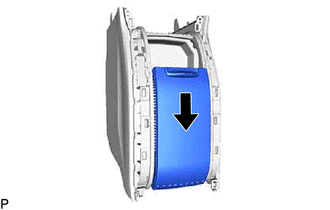

    2. Slide the upper console door sub-assembly in the direction indicated by the arrow shown in the illustration to remove the upper console door sub-assembly.
      GTY423236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
