Removal [02/2014 - ]: Procedure

  1. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

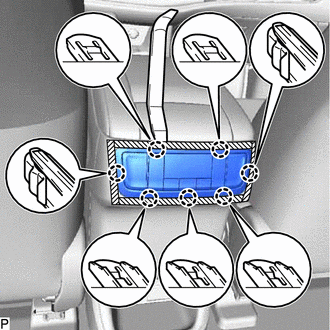

    1. Apply protective tape around the No. 2 air conditioning control assembly.
      GTY445298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a molding remover, disengage the 7 claws to disconnect the No. 2 air conditioning control assembly.
    3. Disconnect the connector to remove the No. 2 air conditioning control assembly.
