Removal [02/2014 - ]: Procedure

  1. REMOVE REAR CONSOLE LOWER BOX

    Refer to PROCEDURE - Step 7

  2. REMOVE NO. 2 CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE VIDEO (VIDEO ADAPTER) TERMINAL
    1. Disengage the 2 claws and remove the video (video adapter) terminal.

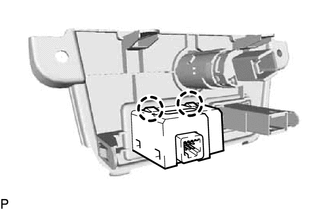

      GTY452178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
