Removal [08/2013 - ]: Procedure

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
SECURE STEERING WHEEL
Refer to PROCEDURE - Step 2
REMOVE COLUMN HOLE COVER SILENCER SHEET
Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8
SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9 Refer to PROCEDURE - Step 9
SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
REMOVE FRONT WHEELS
REMOVE ENGINE UNDER COVER LH
REMOVE ENGINE UNDER COVER RH
SEPARATE TIE ROD END SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 9
SEPARATE TIE ROD END SUB-ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
SEPARATE FRONT STABILIZER LINK ASSEMBLY LH
See step 6
SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 7
SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.

REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

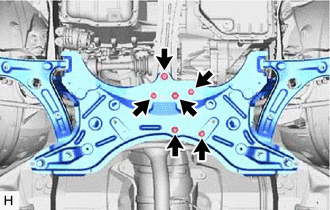

Remove the 3 bolts and 3 nuts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

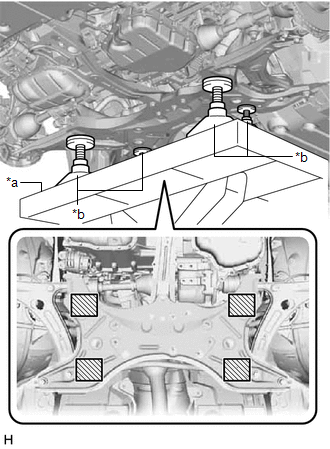

Support the front suspension crossmember sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Engine Lifter
*b	Attachment
	Attachment Placement Location

WARNING:

The front suspension crossmember sub-assembly is a heavy component. Make sure that it is supported securely.
Make sure to secure the front suspension crossmember sub-assembly to prevent it from dropping.

NOTE:

Use the attachments to keep the front suspension crossmember sub-assembly level.

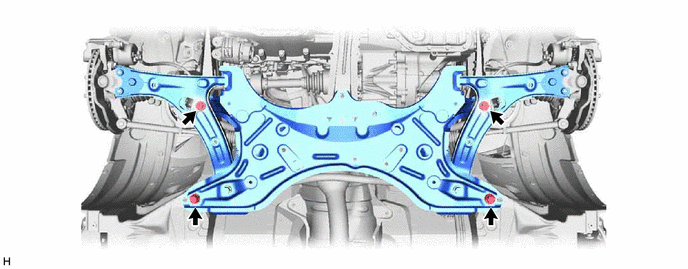

Remove the 4 bolts and front suspension crossmember sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slowly lower the front suspension crossmember sub-assembly.
NOTE:
When lowering the front suspension crossmember sub-assembly, be careful not to damage the vehicle body or other components installed on the vehicle.

REMOVE FRONT TRANSPORT HOOK

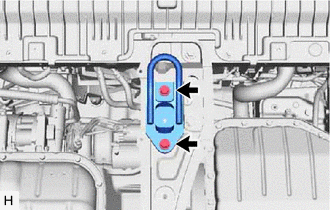

Remove the 2 bolts and front transport hook from the center engine mounting member sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CENTER ENGINE MOUNTING MEMBER SUB-ASSEMBLY

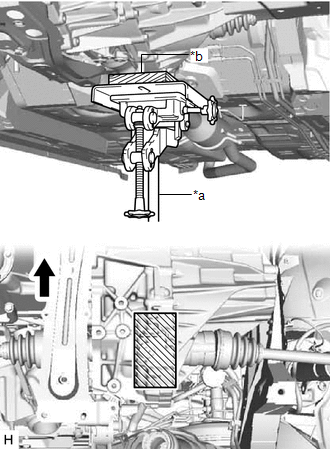

for Manual Transaxle:

Using a jack and wooden block, support the engine and transaxle assembly.

*a	Jack
*b	Wooden Block
	Front of the Vehicle
	Wooden Block Placement Location

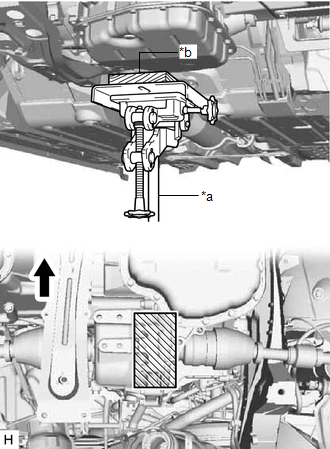

for Automatic Transaxle and CVT:

Using a jack and wooden block, support the engine and transaxle assembly.

*a	Jack
*b	Wooden Block
	Front of the Vehicle
	Wooden Block Placement Location

Remove the 4 bolts and center engine mounting member sub-assembly.

REMOVE FRONT STABILIZER BAR
See step 4
REMOVE STEERING LINK ASSEMBLY
Refer to PROCEDURE - Step 18
REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
See step 2
REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
