Removal [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2013 - 08/2015] Refer to INITIALIZATION [08/2015 - 08/2016]

  2. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [08/2013 - 08/2016]

  3. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 13

  4. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  6. REMOVE BATTERY

    Refer to PROCEDURE - Step 16

  7. REMOVE BATTERY CARRIER

    Refer to PROCEDURE - Step 17

  8. REMOVE FRONT CENTER FLOOR COVER LH

    Refer to PROCEDURE - Step 3

  9. REMOVE FRONT FLOOR UNDER REAR REINFORCEMENT

    Refer to PROCEDURE - Step 3

  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

    Refer to PROCEDURE - Step 7

  11. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Remove the 3 nuts and front No. 1 floor heat insulator from the body.
      GTY431963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Separate the end of the transmission control cable assembly from the transmission floor shift assembly.
      GTY431944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, pull out the stopper of the transmission control cable assembly.
      GTY436418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      NOTE:

      Do not remove the stopper. If it is removed, reinstall it to its original position.

    4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, separate the transmission control cable assembly from the transmission floor shift assembly.
      GTY433316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      *b Nut
      NOTE:

      Do not rotate the nut excessively as the interior spring may come off and the transmission control cable assembly will not be reusable.

    5. Disconnect the transmission control cable assembly from the transmission control cable support.
      GTY432867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

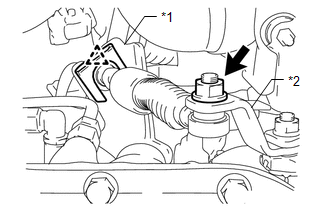

    6. Remove the nut and separate the transmission control cable assembly from the control shaft lever.
      GTY441595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Control Cable Bracket
      *2 Control Shaft Lever
    7. Remove the clip and separate the transmission control cable assembly from the No. 1 transmission control cable bracket.
    8. Remove the nut and separate the transmission control cable assembly from the transmission control cable support.
      GTY453482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle exterior.
      GTY437953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE TRANSMISSION CONTROL CABLE SUPPORT

    HINT:

    Perform this procedure only when replacement of the transmission control cable support is necessary.

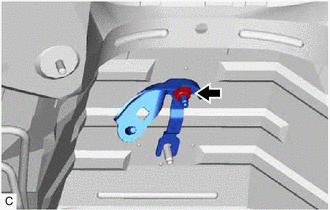

    1. Remove the nut and transmission control cable support from the body.
      GTY425684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
