Removal [08/2013 - 08/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 6

  2. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the clip and nut, and separate the transmission control cable assembly from the No. 1 transmission control cable bracket and control shaft lever.
      GTY441595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Control Cable Bracket
      *2 Control Shaft Lever
  3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the park/neutral position switch assembly connector.

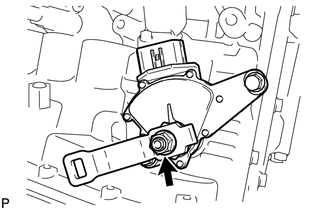

    2. Remove the nut, washer and control shaft lever from the manual valve lever shaft.
      GTY437757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

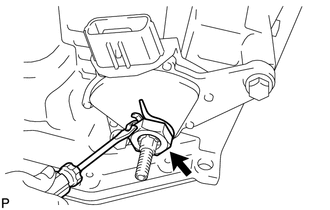

    3. Pry out the lock plate and remove the lock nut and lock plate from the park/neutral position switch assembly.
      GTY437759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

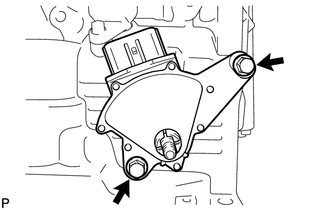

    4. Remove the 2 bolts and park/neutral position switch assembly from the transaxle case.
      GTY437760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
