Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT

    See step  1

  2. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  3. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 24 Refer to PROCEDURE - Step 24

  4. REMOVE ENGINE WATER PUMP ASSEMBLY

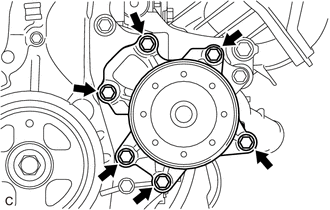

    1. Remove the 6 bolts and engine water pump assembly.
      GTY437913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

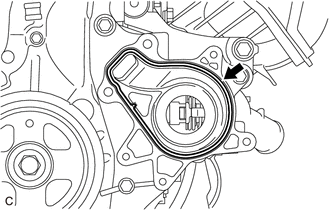

    2. Remove the gasket.
      GTY437914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
