Reassembly [08/2015 - ]

INSTALL HOOD SUPPORT ASSEMBLY LH See step 1
INSTALL HOOD SUPPORT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
CONNECT WASHER HOSE ASSEMBLY
1. Engage the 6 clamps to connect the washer hose assembly.

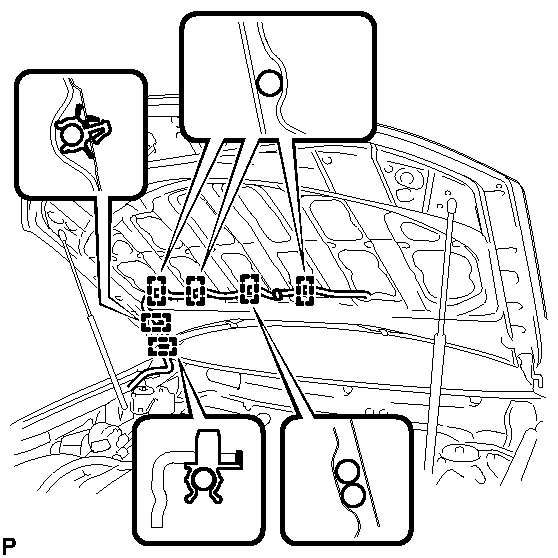

  Fig 1: Identifying Washer Hose Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WASHER NOZZLE SUB-ASSEMBLY . Refer to INSTALLATION [08/2015 - ] - Step 1
INSPECT WASHER NOZZLE SUB-ASSEMBLY . Refer to ON-VEHICLE INSPECTION [08/2015 - ] - Step 1
ADJUST WASHER NOZZLE SUB-ASSEMBLY . Refer to ADJUSTMENT [08/2015 - ] - Step 2
INSTALL HOOD INSULATOR
1. Engage the 2 guides.

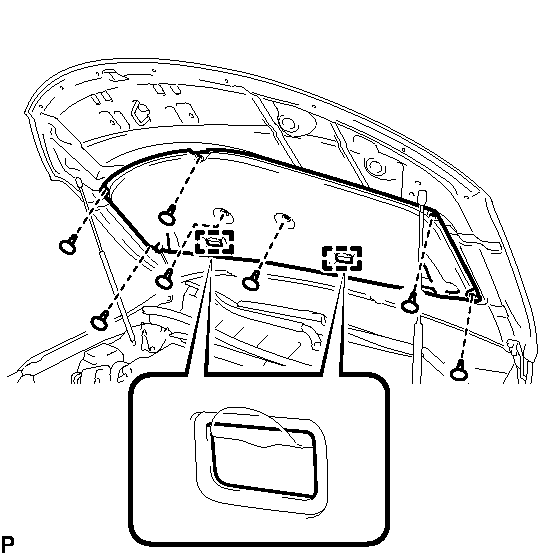

  Fig 2: Locating Clips And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the hood insulator with the 7 new clips.
INSTALL HOOD TO RADIATOR SUPPORT SEAL
1. Engage the 8 clips to install the hood to radiator support seal.

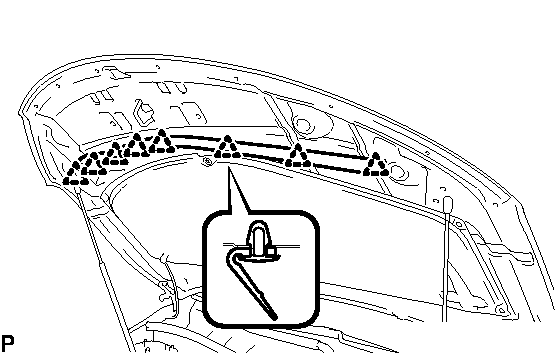

  Fig 3: Identifying Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
