Installation [08/2015 - ]

  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.
    2. Engage the 2 claws to install the washer nozzle sub-assembly as shown in the illustration.

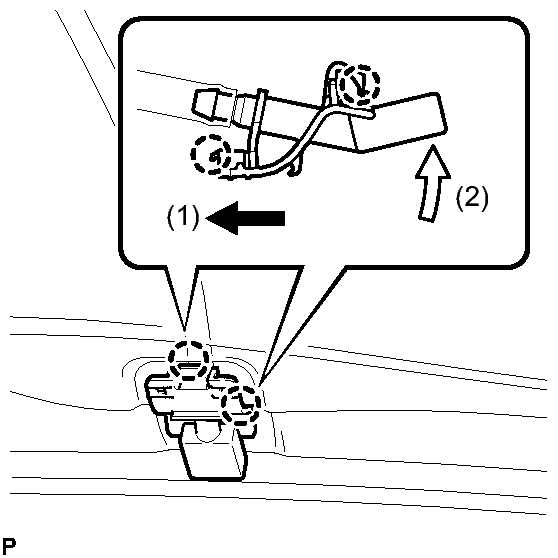

      Fig 1: Engage 2 Claws
      GTY318503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT WASHER NOZZLE SUB-ASSEMBLY  See step  1
  3. ADJUST WASHER NOZZLE SUB-ASSEMBLY  See step  2
