DTC P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT) [08/2015 - 08/2019]: Procedure

1. Disconnect the B32 transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   14 (SLT+) - 6 (SLT-)	20°C (68°F)	5.0 to 5.6 Ω
   14 (SLT+) - Body ground	Always	10 kΩ or higher
   6 (SLT-) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Transmission Wire)

Result:

NG

See step  3

Result:

OK

See step  2

1. Disconnect the B37 ECM connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B37-34 (SLT+) - B37-35 (SLT-)	20°C (68°F)	5.0 to 5.6 Ω
   B37-34 (SLT+) - Body ground	Always	10 kΩ or higher
   B37-35 (SLT-) - Body ground	Always	10 kΩ or higher

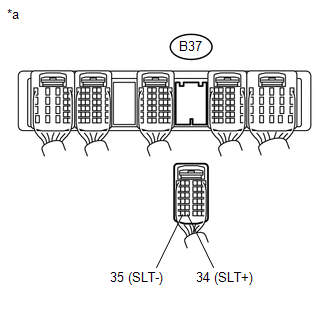

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to ECM)

Result:

OK

REPLACE ECM

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

See step  7

Result:

OK

REPAIR OR REPLACE TRANSMISSION WIRE

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

REPLACE SHIFT SOLENOID VALVE SLT

(Refer to PROCEDURE - Step 4 )
