Disassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT SOLENOID VALVE SR
    1. Remove the 2 bolts and solenoid valve.
      GTY732174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT SOLENOID VALVE SLU
    1. Remove the bolt, solenoid lock plate and 2 straight pins.
      GTY692276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the solenoid valve.
  3. REMOVE SHIFT SOLENOID VALVE SL2
    GTY692278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the bolt, solenoid lock plate and 2 straight pins.
      GTY692268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the solenoid valve.
  5. REMOVE SHIFT SOLENOID VALVE SL1
    GTY692270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT SOLENOID VALVE S1
    1. Remove the bolt and shift solenoid valve.
      GTY692271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

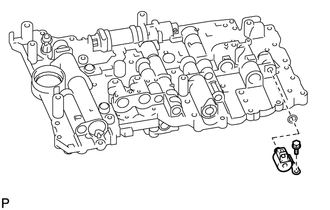

  7. REMOVE SHIFT SOLENOID VALVE S2
    1. Remove the bolt and solenoid valve.
      GTY732173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the shift solenoid valve.
