DTC P0985: Shift Solenoid "E" Control Circuit Low (Shift Solenoid Valve SR); DTC P0986: Shift Solenoid "E" Control Circuit High (Shift Solenoid Valve SR) [08/2019 - ]: Procedure

1. Disconnect the B32 transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   7 (SR) - Body ground	20°C (68°F)	11 to 15 Ω

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Transmission Wire)

Result:

NG

See step  3

Result:

OK

See step  2

1. Disconnect the B38 ECM connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   B38-26 (SR) - Body ground	20°C (68°F)	11 to 15 Ω

   TEXT IN ILLUSTRATION

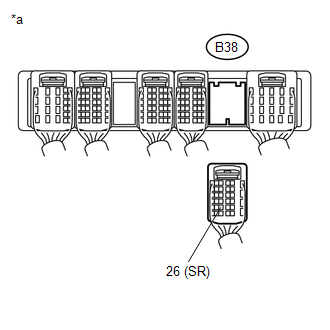

   *a	Rear view of wire harness connector (to ECM)

Result:

OK

REPLACE ECM. Refer to  REMOVAL [08/2015 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Remove shift solenoid valve SR.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Shift solenoid valve SR connector terminal - Shift solenoid valve SR body	20°C (68°F)	11 to 15 Ω

3. Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → Shift solenoid valve SR connector Battery negative (-) → Shift solenoid valve SR body	Valve moves and makes operating noise

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Shift Solenoid Valve SR)

Result:

OK

REPAIR OR REPLACE TRANSMISSION WIRE. Refer to  REMOVAL [08/2015 - ]

Result:

NG

REPLACE SHIFT SOLENOID VALVE SR. Refer to  PROCEDURE - Step 1
