DTC P0722: Output Speed Sensor Circuit No Signal [08/2015 - 08/2019]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT SPEED SENSOR SP2 INSTALLATION
- Check the speed sensor SP2 installation.
OK
The installation bolt is tightened properly and there is no clearance between the sensor and transmission case.
TEXT IN ILLUSTRATION*a CORRECT *b INCORRECT
Result:
NG
SECURELY INSTALL OR REPLACE SPEED SENSOR SP2
(Refer to PROCEDURE - Step 2 )
Result:
OK
See step 2
- Check the speed sensor SP2 installation.
- INSPECT SPEED SENSOR SP2
- Disconnect the B33 speed sensor connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 560 to 680 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Speed Sensor SP2)
Result:
NG
REPLACE SPEED SENSOR SP2
(Refer to PROCEDURE - Step 2 )
Result:
OK
See step 3
- Disconnect the B33 speed sensor connector.
- CHECK HARNESS AND CONNECTOR (SPEED SENSOR SP2 - ECM)
- Disconnect the B38 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

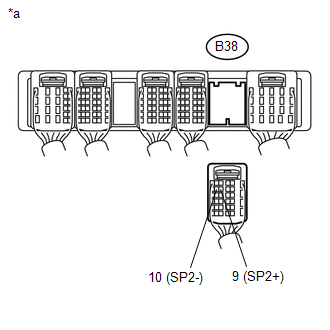

Tester Connection Condition Specified Condition B38-9 (SP2+) - B38-10 (SP2-) 20°C (68°F) 560 to 680 Ω B38-9 (SP2+) - Body ground Always 10 kΩ or higher B38-10 (SP2-) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to ECM)
Result:
OK
REPLACE ECM
(Refer to REMOVAL [08/2015 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Disconnect the B38 ECM connector.
