Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

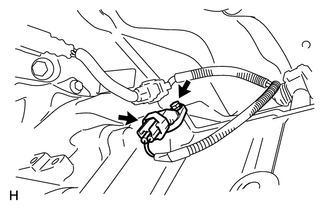

  1. REMOVE SPEED SENSOR NT
    GTY219092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
  2. REMOVE SPEED SENSOR SP2
    GTY229405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
