Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  2. REMOVE REAR ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 13

  3. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 15

  4. REMOVE FRONT NO. 1 FENDER APRON TO FRAME SEAL RH

    Refer to PROCEDURE - Step 17

  5. REMOVE NO. 1 OIL COOLER INLET HOSE AND NO. 1 OIL COOLER OUTLET HOSE

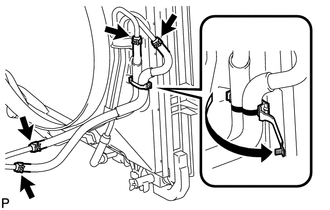

    GTY737011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the claw to open the No. 1 flexible hose clamp.
    2. Disconnect the No. 1 oil cooler inlet hose and No. 1 oil cooler outlet hose from the No. 2 oil cooler tube.
    3. Disconnect the 2 hoses from the oil cooler inlet tube and No. 1 oil cooler outlet tube and remove them.
      NOTE:

      When disconnecting the hoses from the tube, support the tube by hand and be careful to prevent the tube from being deformed.

  6. REMOVE NO. 1 OIL COOLER INLET TUBE AND NO. 1 OIL COOLER OUTLET TUBE
    1. Using a union nut wrench, disconnect the No. 1 oil cooler inlet tube and No. 1 oil cooler outlet tube from each oil cooler tube union.
      GTY692121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts to open the 2 No. 2 flexible hose clamps and remove the 2 oil cooler tubes.
    3. Remove the 2 bolts and 2 No. 2 flexible hose clamps.
  7. REMOVE NO. 2 OIL COOLER INLET HOSE AND NO. 2 OIL COOLER OUTLET HOSE

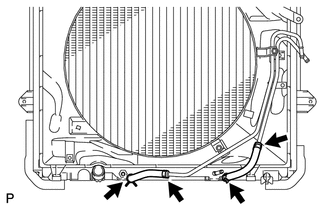

    GTY687395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the No. 2 oil cooler inlet hose and No. 2 oil cooler outlet hose from the radiator.
    2. Disconnect the 2 hoses from the No. 2 oil cooler tube and remove them.
      NOTE:

      When disconnecting the hoses from the tube, support the tube by hand and be careful to prevent the tube from being deformed.

  8. REMOVE NO. 2 OIL COOLER TUBE SUB-ASSEMBLY

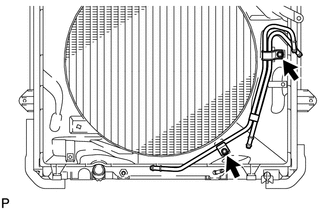

    GTY714271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and No. 2 oil cooler tube.
