Removal [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN TRANSFER OIL
See step 1
REMOVE FRONT PROPELLER SHAFT ASSEMBLY
Refer to REMOVAL [08/2015 - ]
REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
Refer to REMOVAL [08/2015 - ]
SUPPORT TRANSMISSION ASSEMBLY
Refer to PROCEDURE - Step 21
REMOVE NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23
REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR
Refer to PROCEDURE - Step 24
DISCONNECT WIRE HARNESS AND CONNECTOR
Refer to PROCEDURE - Step 25

SUPPORT TRANSFER ASSEMBLY

Tilt the transmission assembly until the transfer assembly can be removed.
NOTE:
Do not damage the wire harness, pipe or surrounding parts.

Support the transfer assembly with a transmission jack.

NOTE:

Secure the transfer assembly to the transmission jack using a belt, etc. to prevent it from falling.

GTY907010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

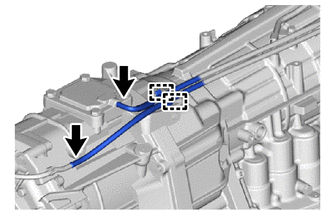

DISCONNECT TRANSFER BREATHER HOSE SUB-ASSEMBLY

GTY891171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the 2 transfer breather hose sub-assemblies and detach the 2 clamps.

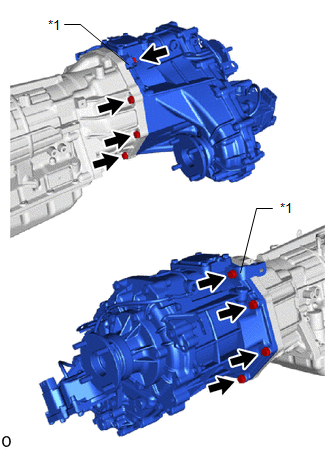

REMOVE TRANSFER ASSEMBLY

Remove the 8 bolts and 2 clamps.

GTY852048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1

Clamp

Remove the transfer assembly from the transmission assembly.
NOTE:
Do not damage the lip of the transfer adaptor oil seal.

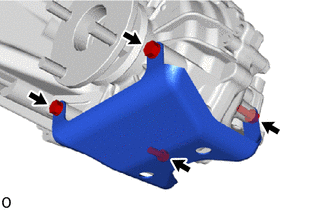

REMOVE TRANSFER CASE LOWER PROTECTOR

Remove the 4 bolts and transfer case lower protector.

GTY935968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
