Installation [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSFER CASE LOWER PROTECTOR
1. Install the transfer case lower protector with the 4 bolts.
  Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

INSTALL TRANSFER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

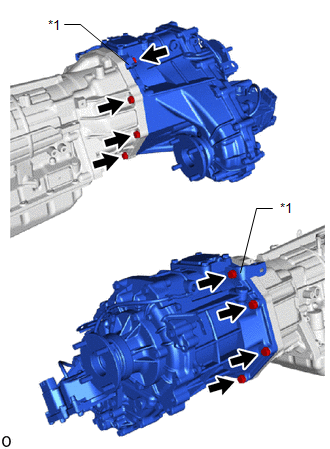

Install the transfer assembly and 2 clamps with the 8 bolts.

TEXT IN ILLUSTRATION

Clamp

NOTE:

Do not damage the lip of the transfer adaptor oil seal.

Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

CONNECT TRANSFER BREATHER HOSE SUB-ASSEMBLY

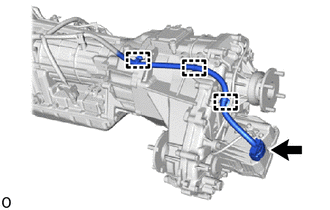

1. Connect the 2 transfer breather hose sub-assemblies and attach the 2 clamps.

CONNECT WIRE HARNESS

Connect the connector and attach the 3 clamps.

CONNECT WIRE HARNESS AND CONNECTOR
Refer to PROCEDURE - Step 6
INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR
Refer to PROCEDURE - Step 7
INSTALL NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
Refer to INSTALLATION [08/2015 - ]
INSTALL FRONT PROPELLER SHAFT ASSEMBLY
Refer to INSTALLATION [08/2015 - ]
ADD TRANSFER OIL
See step 2
CHECK FOR TRANSFER OIL LEAK
