Installation [08/2015 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

1. Install the exhaust pipe support.
2. Set 2 new gaskets to the front No. 2 exhaust pipe assembly.
3. Connect the front No. 2 exhaust pipe assembly to the exhaust pipe support and exhaust manifold.
4. Install 2 new nuts.

   Torque: 54 N*m (554 kgf*cm, 40 ft.*lbf)

5. Connect the heated oxygen sensor connector.

1. Install the exhaust pipe stopper bracket with the 2 bolts.

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

1. Using a plastic-faced hammer and wooden block, tap in a new gasket until its surface is flush with the front exhaust pipe assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Gasket
   *2	Wooden Block

   NOTE:

   • Be sure to install the gasket so that it faces the correct direction.
   • Do not reuse the gasket.
   • Do not damage the gasket.
   • When connecting the front exhaust pipe assembly, do not push in the gasket with the front exhaust pipe assembly.
2. Install a new gasket and the front exhaust pipe assembly to the exhaust manifold with 2 new nuts.

   Torque: 54 N*m (554 kgf*cm, 40 ft.*lbf)

3. Connect the front exhaust pipe assembly to the front No. 2 exhaust pipe assembly with the 2 bolts.

   Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

4. Connect the heated oxygen sensor connector.

1. Using a vernier caliper, measure the free length of the compression spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Minimum free length

   38.5 mm (1.52 in.)

   1. If the free length is less than the minimum, replace the compression spring.
2. Set a new gasket to the front exhaust pipe assembly.
3. Install the 4 exhaust pipe supports.
4. Connect the center exhaust pipe assembly to the 4 exhaust pipe supports.
5. Install the center exhaust pipe assembly with the 2 compression springs and 2 bolts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

1. Install the exhaust pipe support.
2. Set a new gasket to the center exhaust pipe assembly.
3. Connect the tailpipe to the exhaust pipe support.
4. Install the 2 bolts.

   Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

1. If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

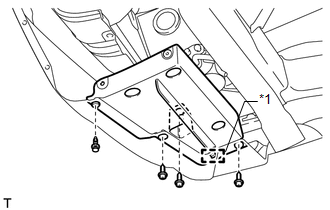

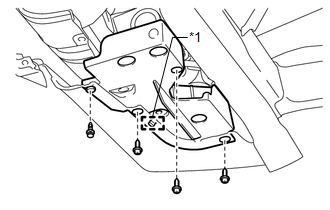

1. Attach the guide and install the rear bumper side bracket RH with the 3 screws and clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Guide

1. Attach the guide and install the rear bumper side bracket RH with the 3 screws and clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Guide

1. Install the rear quarter panel mudguard RH with the 6 screws and 3 clips.

1. Install the rear quarter panel mudguard RH with the 4 screws and 4 clips.

Refer to PROCEDURE - Step 65

1. If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.
