Removal [08/2015 - ]: Procedure

  1. REMOVE V-BANK COVER

    Refer to PROCEDURE - Step 10

  2. REMOVE AIR CLEANER CAP AND HOSE

    Refer to PROCEDURE - Step 2

  3. REMOVE AIR TUBE

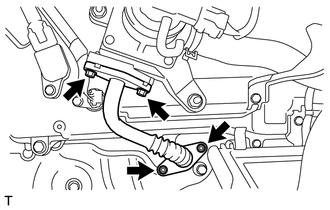

    1. Remove the 2 bolts, 2 nuts and air tube.
      GTY371668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 gaskets from the air tube.
      NOTE:

      Be careful not to damage the installation surfaces of the gaskets.

  4. REMOVE NO. 1 EMISSION CONTROL VALVE SET

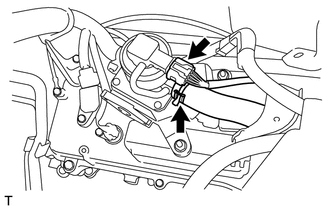

    1. Disconnect the No. 1 emission control valve set connector.
      GTY382889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 1 air hose from the No. 1 emission control valve set.

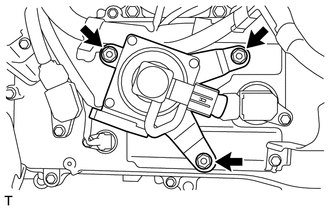

    3. Remove the 3 nuts and No. 1 emission control valve set.
      GTY371672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
