Installation [08/2015 - ]: Procedure

1. Install the No. 1 emission control valve set with the 3 nuts.

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

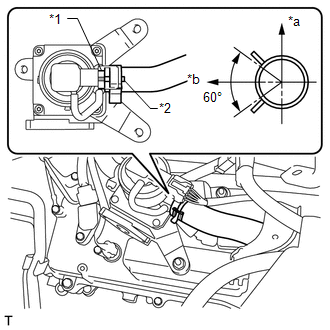

2. Align the paint mark with the projection and connect the No. 1 air hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Projection
   *2	Paint mark
   *a	RH Side
   *b	Upper

   HINT:

   Make sure the direction of the hose clamp is as shown in the illustration.

3. Connect the No. 1 emission control valve set connector.

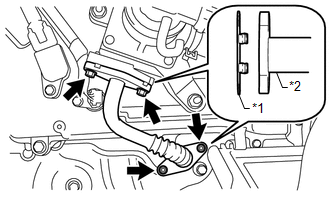

1. Install 2 new gaskets to the air tube.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	New Gasket
   *2	Air Tube

   NOTE:

   Be careful not to damage the installation surfaces of the gaskets.

2. Install the air tube with the 2 bolts and 2 nuts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 14
