DTC P1604: Startability Malfunction [11/2013 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
5. Read the DTCs and record the Freeze Frame Data.

   Powertrain > Engine and ECT > Trouble Codes

   HINT:

   • This freeze frame data shows the actual engine conditions when engine starting trouble occurred.
   • When confirming the freeze frame data, be sure to check all 5 data sets of freeze frame data.
   • The fourth set of freeze frame data is the data recorded when the DTC is stored.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   Result	Proceed to
   DTC P1604 is output	A
   DTC P1604 and other DTCs are output	B

Result:

B

GO TO DTC CHART:  DIAGNOSTIC TROUBLE CODE CHART [11/2013 - 08/2014]  ,  DIAGNOSTIC TROUBLE CODE CHART [08/2014 - 10/2015]  ,  DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2016]  ,  DIAGNOSTIC TROUBLE CODE CHART [08/2016 - 08/2017]  ,  DIAGNOSTIC TROUBLE CODE CHART [08/2017 - ]

Result:  1

A

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Immobiliser Fuel Cut.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Immobiliser Fuel Cut

5. Read the value displayed on the Techstream.

   OK

   Immobiliser Fuel Cut is OFF

   HINT:

   • If the engine is started immediately after reconnecting the battery terminal, the engine may stall immediately after it starts due to the intercommunication process between each ECU. For this reason, when starting the engine after reconnecting the battery terminal, first turn the ignition switch to ON and then wait several seconds for the communication process to complete before starting the engine.
   • When this operation causes DTC P1604 to be stored, this is due to normal operation of the immobiliser system and does not indicate a malfunction, so clear the DTC and return the vehicle to the customer.

   Result

   Result	Proceed to
   OK	A
   NG (w/ Smart Key System)	B
   NG (w/o Smart Key System)	C

Result:

B

REPAIR IMMOBILISER SYSTEM (W/SMART KEY SYSTEM):  HOW TO PROCEED WITH TROUBLESHOOTING [12/2012 - ]

Result:

C

REPAIR IMMOBILISER SYSTEM (W/O SMART KEY SYSTEM):  HOW TO PROCEED WITH TROUBLESHOOTING [12/2012 - ]

Result:

A

See step  3

1. Confirm the problem symptoms.

   Result

   Result	Proceed to
   Freeze frame data exists, but the starting difficulty cannot be reproduced and it is unknown what kind of starting difficulty occurred	A
   The problem symptoms can be reproduced, or the malfunction conditions are known	B

Result:

B

See step  25

Result:

A

See step  4

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

   Refer to FREEZE FRAME DATA [12/2012 - ]

   Result

   Freeze Frame Data Item		Suspected Area	Proceed to
   Engine Speed	Battery Voltage
   All 5 sets of freeze frame data are 0 rpm (no engine cranking at all)	Minimum voltage is less than 5 V	Battery fully depleted	A
   	Minimum voltage is 5 V or higher	Starter assembly malfunction Crankshaft position sensor system Excess engine friction ECM	B
   60 to 250 rpm (engine cranks but no initial combustion)	-	Fuel pump control system Ignition system Engine coolant temperature sensor Fuel injection system	C
   250 rpm or higher (combustion occurs but initial combustion and starter turnoff occur late)	-	Engine assembly Engine coolant temperature sensor Fuel injection system Fuel pump control system	D

   Result

   Freeze Frame Data Item	Suspected Area	Proceed to
   Low Rev for Eng Start
   ON exists	Intake system connections Throttle with motor body assembly Camshaft timing oil control valve assembly Mass air flow meter sub-assembly	E

   HINT:

   When DTC P1604 is stored, either "Engine Start Hesitation"*1 or "Low Rev for Eng Start"*2 in the Freeze Frame Data will be ON. If "Low Rev for Eng Start" is ON, proceed to E.

   *1: This value turns ON when the engine speed does not reach a certain value for a certain period of time when starting the engine.

   *2: This value turns ON when the engine stalls immediately after starting the engine. If "Low Rev for Eng Start" is ON, as there is a possibility that the low engine speed or engine stall was caused by the user, confirm the following freeze frame data items.

   • Immobiliser Fuel Cut
   • Engine Speed (Starter Off)
   • Shift SW Status (R, D Range)

Result:

A

CHARGE OR REPLACE BATTERY

Result:

C

See step  10

Result:

D

See step  15

Result:

E

See step  67

Result:

B

See step  5

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

   Refer to FREEZE FRAME DATA [12/2012 - ]

   Result

   Freeze Frame Data Item	Result	Suspected Area	Proceed to
   Battery Voltage	Minimum voltage is 6 V or higher and voltage does not fluctuate*1	Starter system	A
   	Minimum voltage is 6 V or higher and voltage fluctuates*2, *3	Crankshaft position sensor system ECM	B
   	Minimum voltage is 5 to 6 V*4	Excess engine friction Battery fully depleted	C

   HINT:

   • *1: The 5 sets of freeze frame data show approximately the same battery voltage.
   • *2: The 5 sets of freeze frame data show different battery voltages.
   • *3: If the voltage fluctuates, it can be determined that cranking is being performed. When the engine speed is 0 rpm, the crankshaft position sensor system and/or the ECM may be malfunctioning.
   • *4: There may be excess engine friction. Make sure that the crankshaft rotates smoothly when turning it by hand. Excess engine friction may have occurred temporarily. Remove the cylinder head cover and oil pan, and check for foreign matter such as iron fragments. If there is a malfunction or signs of a malfunction present, perform a detailed inspection by disassembling all the parts.
   • Perform "Inspection After Repair" after replacing the engine assembly.

     Refer to INITIALIZATION [12/2012 - ]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result:

A

CHECK STARTER SIGNAL CIRCUIT:  Starter Signal Circuit [12/2012 - 10/2015]  ,  Starter Signal Circuit [10/2015 - 08/2017]  ,  Starter Signal Circuit [08/2017 - ]

Result:

C

CHECK AND REPAIR ENGINE ASSEMBLY OR BATTERY

Result:

B

See step  6

1. Check the tightening and installation condition of the crankshaft position sensor bolt.
2. Check the connection of the crankshaft position sensor connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR:  INSTALLATION [12/2012 - 10/2015]  ,  INSTALLATION [10/2015 - ]

Result:

OK

See step  7

1. Disconnect the crankshaft position sensor connector.
2. Check for oil on the connector terminals.

   OK

   No oil on the terminals.

Result:

NG

REPLACE CRANKSHAFT POSITION SENSOR:  REMOVAL [12/2012 - ]

Result:

OK

See step  8

1. Check the harnesses and connectors, referring to DTC P0335 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  9

1. Replace the crankshaft position sensor.

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

Result:

NG

REPLACE ECM:  REMOVAL [12/2012 - ]

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

   Refer to FREEZE FRAME DATA [12/2012 - ]

   Result

   Freeze Frame Data Item			Suspected Area	Proceed to
   Coolant Temp, Intake Air	Coolant Temp	Fuel Pump/Speed Status
   Difference between Coolant Temp and Intake Air is 10°C (18°F) or higher*1	Coolant Temp is 125°C (257°F) or higher, or lower than outside temperature*3 by 15°C (27°F) or more	-	Engine coolant temperature sensor	A
   	Other than above	All 5 sets of freeze frame data are ON	-	B
   		At least 1 of the 5 sets of freeze frame data is OFF	Fuel pump control system	C
   Difference between Coolant Temp and Intake Air is less than 10°C (18°F) *2	-	At least 1 of the 5 sets of freeze frame data is OFF	Fuel pump control system
   		All 5 sets of freeze frame data are ON	-	B

   HINT:

   • *1: A long time had not elapsed after stopping the engine.
   • *2: A long time had elapsed after stopping the engine.
   • *3: Use an actual outside temperature estimated from the Initial Intake Air Temp, Ambient Temp for A/C, and (if possible) the weather when the DTC was detected.
   • Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

     Refer to INITIALIZATION [12/2012 - ]

Result:

A

REPLACE ENGINE COOLANT TEMPERATURE SENSOR:  REMOVAL [12/2012 - ]

Result:

C

CHECK FUEL PUMP CONTROL CIRCUIT:  Fuel Pump Control Circuit [12/2012 - 08/2017]  ,  Fuel Pump Control Circuit [08/2017 - ]

Result:

B

See step  11

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

5. When performing the Active Test, check for an operating sound from the fuel pump.

   OK

   Control the Fuel Pump / Speed	Specified Condition
   ON	Operating sound heard
   OFF	Operating sound not heard

   HINT:

   Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.

Result:

NG

CHECK FUEL PUMP CONTROL CIRCUIT:  Fuel Pump Control Circuit [12/2012 - 08/2017]  :  Fuel Pump Control Circuit [08/2017 - ]

Result:

OK

See step  12

1. Check the harnesses and connectors, referring to DTC P0300 procedure.

   Refer to PROCEDURE - Step 10 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 10 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 27 [08/2016 - ]

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

CHECK FUEL INJECTOR CIRCUIT:  Fuel Injector Circuit [12/2012 - 08/2017]  ,  Fuel Injector Circuit [08/2017 - ]

Result:

OK

See step  13

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

5. When performing the Active Test, check for fuel leakage from the fuel pipes.

   Result

   Result	Proceed to
   Fuel leakage or signs of fuel leakage are present	A
   No fuel leakage or signs of fuel leakage	B

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • When performing the Active Test, if there is no operating noise from the fuel pump, the fuel pump system may be malfunctioning.
   • Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.

Result:

A

REPAIR OR REPLACE FUEL LINE

Result:

B

See step  14

Refer to ON-VEHICLE INSPECTION [12/2012 - ]

Result

Result:

A

REPAIR OR REPLACE FUEL SYSTEM

Result:

B

See step  24

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

   Refer to FREEZE FRAME DATA [12/2012 - ]

   Result

   Freeze Frame Data Item				Suspected Area	Proceed to
   Coolant Temp, Intake Air	Coolant Temp	Long FT #1	Engine Speed
   Difference between Coolant Temp and Intake Air is 10°C (18°F) or higher	Coolant Temp is 125°C (257°F) or higher, or lower than outside temperature*2 by 15°C (27°F) or more	-	-	Engine coolant temperature sensor	A
   	Other than above	-15% or less, or +15% or higher	-	Fuel pump control system Fuel injector assembly	B
   		-15 to +15%	Minimum speed is 300 rpm or higher*1	Engine assembly	C
   			Minimum speed is below 300 rpm	Fuel system Intake air system	D
   Difference between Coolant Temp and Intake Air is less than 10°C (18°F)	-	-15% or less, or +15% or higher	-	Fuel pump control system Fuel injector assembly	B
   		-15 to +15%	Minimum speed is 300 rpm or higher*1	Engine assembly	C
   			Minimum speed is below 300 rpm	Fuel system Intake air system	D

   HINT:

   • *1: Compression loss may have occurred in the engine assembly.
   • *2: Use an actual outside temperature estimated from the Initial Intake Air Temp, Ambient Temp for A/C, and (if possible) the weather when the DTC was detected.
   • Perform "Inspection After Repair" after replacing the engine assembly or engine coolant temperature sensor.

     Refer to INITIALIZATION [12/2012 - ]

Result:

A

REPLACE ENGINE COOLANT TEMPERATURE SENSOR:  REMOVAL [12/2012 - ]

Result:

C

CHECK AND REPAIR ENGINE ASSEMBLY

Result:

D

See step  18

Result:

B

See step  16

1. Check that no carbon is stuck to the fuel injector assembly.

   OK

   No carbon present.

   HINT:

   Perform "Inspection After Repair" after replacing the fuel injector assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

OK

See step  17

1. Check for foreign matter such as iron particles around the fuel pump (fuel pump, fuel pump filter, and inside the fuel tank), and for signs that the fuel pump was stuck.

   Result

   Result	Proceed to
   There is foreign matter or signs that fuel pump was stuck	A
   There is no foreign matter and no signs that fuel pump was stuck	B

   HINT:

   If there is foreign matter such as iron particles on the fuel pump, fuel filter or fuel tank, remove the foreign matter.

Result:

A

REPAIR OR REPLACE FUEL SYSTEM

Result:

B

See step  24

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored.

   Refer to FREEZE FRAME DATA [12/2012 - ]

   Result

   Freeze Frame Data Item	Result	Suspected Area	Proceed to
   Coolant Temp	Engine coolant temperature is 40°C (104°F) or less*1	Fuel pressure regulator	A
   	Engine coolant temperature is 40 to 90°C (104 to 194°F)*2	Fuel injector assembly	B
   	Engine coolant temperature is 90°C (194°F) or higher*3	Fuel pressure regulator	A

   HINT:

   *1: If the engine coolant temperature is 40°C [104°F] or less (after stopping the engine and the vehicle is not driven for a long period of time), the fuel pressure regulator may be stuck open. Attach a fuel pressure gauge and check the ability to maintain fuel pressure after stopping the engine.

   *2: If the engine coolant temperature is 40 to 90°C [104 to 194°F] (15 to 120 minutes have passed after stopping the engine), there may be fuel leaking from a fuel injector.

   *3: If the engine coolant temperature is 90°C [194°F] or higher (2 to 5 minutes have passed after stopping the engine), there may be a problem with the fuel pressure regulator failing to maintain the fuel pressure. Attach a fuel pressure gauge and check the ability to maintain fuel pressure after stopping the engine.

Result:

B

See step  20

Result:

A

See step  19

HINT:

For the fuel pressure inspection, refer to the following procedures.

Refer to PROCEDURE - Step 2

1. Attach a fuel pressure gauge and check the fuel pressure after stopping the engine.

   Standard

   147 kPa (1.5 kgf/cm² , 21 psi) or higher (5 minutes after stopping the engine)

   HINT:

   If the engine cannot be started, read the values after cranking the engine.

   Result

   Result	Proceed to
   Abnormal	A
   Normal	B

Result:

A

REPLACE FUEL PRESSURE REGULATOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  24

1. Clean the inside of the surge tank with compressed air.
2. After stopping the engine, measure the HC concentration inside the surge tank for 15 minutes.

   Result

   Result	Proceed to
   4000 ppm or higher	A
   Less than 4000 ppm	B

   HINT:

   If the concentration is 4000 ppm or higher, a fuel injector assembly may have a sealing problem.

Result:

B

See step  22

Result:

A

See step  21

1. Inspect the fuel injector assemblies.

   Refer to INSPECTION [12/2012 - ]

   Result

   Result	Proceed to
   Normal	A
   Abnormal	B

   HINT:

   Perform "Inspection After Repair" after replacing the fuel injector assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

A

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  22

1. Check if carbon is in the air flow passage.

   Result

   Result	Proceed to
   No carbon present	A
   Carbon in passage	B

   HINT:

   Perform "Inspection After Repair" after cleaning or replacing the throttle with motor body assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

B

CLEAN OR REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

A

See step  23

1. Check the intake system for vacuum leaks.

   Refer to PROCEDURE - Step 1

   OK

   No leak in intake system.

   HINT:

   Perform "Inspection After Repair" after repairing or replacing the intake system.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPAIR OR REPLACE INTAKE SYSTEM

Result:

OK

See step  24

1. Check if the engine can be started.

   Result

   Result	Proceed to
   Engine cannot be started	A
   Engine can be started	B

Result:

B

END

Result:

A

See step  25

1. Confirm the problem symptoms.

   HINT:

   The problem symptoms below can be determined by reading the freeze frame data.

   Result

   Problem Symptom	Suspected Area	Proceed to
   The engine does not crank	Battery fully depleted Starter assembly (includes pinion gear wear or teeth damage) Starter system Engine assembly (excess friction) Drive plate and ring gear sub-assembly wear or teeth damage	A
   Abnormal cranking speed	Battery fully depleted Starter assembly Engine assembly (excess friction, compression loss)	B
   There is no initial combustion (combustion does not occur even once)*1	Fuel pressure regulator fuel pressure maintenance Fuel injector assembly leak Fuel leak from fuel line Fuel pump control system Fuel pump Spark plug Crankshaft position sensor system Ignition coil assembly system	C
   The engine stalls after starter turn off (engine stalls immediately after the first time the engine speed increases)*2	Intake system connections Throttle with motor body assembly Camshaft timing oil control valve assembly Mass air flow meter sub-assembly system	D
   The initial combustion and starter turnoff occur late*3	Engine coolant temperature sensor Mass air flow meter sub-assembly Air fuel ratio sensor Heated oxygen sensor Fuel injector assembly Spark plug Fuel pressure regulator Fuel pump Fuel pump control system	E

   HINT:

   • If there is hesitation (cranking speed is slow and combustion occurs before passing TDC) during the initial cranking period, the battery charge may be insufficient or the starter may be malfunctioning.
   • *1: If there is no initial combustion, a wire harness may be malfunctioning, or the ignition or fuel system may be malfunctioning.
   • *2: If the engine stalls after starter turnoff, the air fuel ratio may be incorrect or the camshaft timing oil control valve may have a problem returning.
   • *3: If the initial combustion and starter turnoff occur late, the fuel injection volume may be incorrect (too low or too high).

Result:

B

See step  32

Result:

C

See step  35

Result:

D

See step  67

Result:

E

See step  49

Result:

A

See step  26

1. When cranking the engine, check for a noise indicating that the starter pinion gear is extending, and check that the starter pinion gear is not spinning freely.

   Result

   Problem Symptom	Suspected Area	Proceed to
   A noise indicating that the starter pinion gear is extending is heard and the starter pinion gear is not spinning freely.*1	Battery Excess engine friction Starter assembly	A
   A noise indicating that the starter pinion gear is extending is heard but the starter pinion gear is spinning freely.	Drive plate and ring gear sub-assembly Starter assembly	B
   A noise indicating that the starter pinion gear is extending is not heard	Battery Starter assembly Starter system	C

   HINT:

   *1: The battery may be fully depleted or there may be excess engine friction.

Result:

B

See step  29

Result:

C

See step  30

Result:

A

See step  27

1. Inspect the battery.

   Refer to PROCEDURE - Step 1 [11/2013 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

Result:

NG

CHARGE OR REPLACE BATTERY

Result:

OK

See step  28

1. Check that the crankshaft rotates smoothly when rotating it by hand.

   OK

   Crankshaft rotates smoothly.

   HINT:

   • Excess engine friction may have occurred temporarily. Remove the cylinder head cover and oil pan, and check for foreign matter such as iron fragments. If there is a malfunction or signs of a malfunction present, perform a detailed inspection by disassembling all the parts.
   • Perform "Inspection After Repair" after replacing the engine assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

OK

INSPECT STARTER ASSEMBLY:  INSPECTION [12/2012 - 08/2017]  , or refer to  INSPECTION [08/2017 - ]

Result:

NG

REPAIR OR REPLACE ENGINE ASSEMBLY

1. Remove the starter assembly.

   Refer to REMOVAL [12/2012 - 08/2017] , or refer to REMOVAL [08/2017 - ]

2. Check for starter pinion gear wear and damage.

   OK

   There is no wear or damage.

Result:

OK

REPLACE REPLACE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Result:

NG

REPLACE STARTER ASSEMBLY:  REMOVAL [12/2012 - 08/2017]  ,  REMOVAL [08/2017 - ]

1. Inspect the battery.

   Refer to PROCEDURE - Step 1 [11/2013 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

Result:

NG

CHARGE OR REPLACE BATTERY

Result:

OK

See step  31

1. Inspect the starter assembly.

   Refer to INSPECTION [12/2012 - 08/2017] , or refer to INSPECTION [08/2017 - ]

Result:

OK

CHECK STARTER SIGNAL CIRCUIT:  Starter Signal Circuit [12/2012 - 10/2015]  ,  Starter Signal Circuit [10/2015 - 08/2017]  ,  Starter Signal Circuit [08/2017 - ]

Result:

NG

REPLACE STARTER ASSEMBLY:  REMOVAL [12/2012 - 08/2017]  ,  REMOVAL [08/2017 - ]

1. Check the cranking speed.

   Result

   Problem Symptom	Suspected Area	Proceed to
   Cranking speed is slow (100 rpm or less)	Battery Starter assembly Excess engine friction	A
   Cranking speed is fast (300 rpm or higher)*1	Engine compression loss	B

   HINT:

   • *1: If the cranking speed is fast, there may be compression loss.
   • Perform "Inspection After Repair" after replacing the engine assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

B

CHECK AND REPAIR ENGINE ASSEMBLY

Result:

A

See step  33

1. Inspect the battery.

   Refer to PROCEDURE - Step 1 [11/2013 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

Result:

NG

CHARGE OR REPLACE BATTERY

Result:

OK

See step  34

1. Check that the crankshaft rotates smoothly when rotating it by hand.

   OK

   Crankshaft rotates smoothly.

   HINT:

   • Excess engine friction may have occurred temporarily. Remove the cylinder head cover and oil pan, and check for foreign matter such as iron fragments. If there is a malfunction or signs of a malfunction present, perform a detailed inspection by disassembling all the parts.
   • Perform "Inspection After Repair" after replacing the engine assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

OK

INSPECT STARTER ASSEMBLY:  INSPECTION [12/2012 - 08/2017]  ,  INSPECTION [08/2017 - ]

Result:

NG

CHECK AND REPAIR ENGINE ASSEMBLY

1. Using a sound scope or screwdriver, check for an injector operating sound while cranking the engine.

   OK

   Fuel injector assembly operating sound is heard.

Result:

NG

See step  47

Result:

OK

See step  36

1. Check the fuel pressure.

   Refer to PROCEDURE - Step 2

Result:

NG

See step  45

Result:

OK

See step  37

1. Check for sparks.

   Refer to ON-VEHICLE INSPECTION [12/2012 - ]

Result:

NG

See step  41

Result:

OK

See step  38

1. Confirm the conditions present when the malfunction occurred based on the customer problem analysis.

   Result

   Problem Symptom	Suspected Area	Proceed to
   When the engine is stopped and a long time has passed, engine starting trouble occurs*1	Fuel pressure regulator is stuck open	A
   When the engine is stopped and approximately 15 to 120 minutes have passed, engine starting trouble occurs*2	Fuel injector assembly leak	B
   When the engine is stopped and approximately 2 to 3 minutes have passed, engine starting trouble occurs*3	Failure to maintain fuel pressure by fuel pressure regulator	A
   Condition other than above, or there is an inconsistency in the conditions present when engine starting trouble occurs	-	C *4

   HINT:

   *1: The fuel pressure regulator may be stuck open. Attach a fuel pressure gauge and check the ability to maintain fuel pressure after stopping the engine.

   *2: Fuel may be leaking from a fuel injector assembly.

   *3: The fuel pressure regulator may not be able to maintain the fuel pressure. Attach a fuel pressure gauge and check the ability to maintain fuel pressure after stopping the engine.

   *4: From step 62, perform fuel system troubleshooting C (steps 63 to 66, 72).

Result:

B

See step  40

Result:

C

See step  62

Result:

A

See step  39

HINT:

For the fuel pressure inspection, refer to the following procedures.

Refer to PROCEDURE - Step 2

1. Attach a fuel pressure gauge and check the fuel pressure after stopping the engine.

   Standard

   147 kPa (1.5 kgf/cm² , 21 psi) or higher (5 minutes after stopping the engine)

   Result

   Result	Proceed to
   Abnormal	A
   Normal	B *1

   HINT:

   • If the engine cannot be started, read the values after cranking the engine.
   • *1: from step 62, perform fuel system troubleshooting C (steps 63 to 66, 72).

Result:

A

REPLACE FUEL PRESSURE REGULATOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  62

1. Clean the inside of the surge tank with compressed air.
2. After stopping the engine, measure the HC concentration inside the surge tank for 15 minutes.

   Result

   Result	Proceed to
   4000 ppm or higher	A
   Less than 4000 ppm	B *1

   HINT:

   • If the concentration is 4000 ppm or higher, a fuel injector may have a sealing problem.
   • 1: From step 62, perform fuel system troubleshooting C (steps 63 to 66, 72).
   • Perform "Inspection After Repair" after replacing the fuel injector assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

A

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  62

1. Inspect the spark plugs.

   Refer to PROCEDURE - Step 3

   HINT:

   • Even if the spark plug of only one cylinder is malfunctioning, replace the spark plugs of all cylinders.
   • Perform "Inspection After Repair" after replacing the spark plug.

     Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE SPARK PLUG:  REMOVAL [12/2012 - ]

Result:

OK

See step  42

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Engine Speed.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Engine Speed

5. Start the engine.
6. While running the engine, read the [Engine Speed] value.

   OK

   A value that matches the actual engine speed is constantly output.

   HINT:

   • Check the engine speed using a line graph.
   • If the engine cannot be started, check the engine speed while cranking the engine.
   • If the engine speed is 0 rpm, the crankshaft position sensor may have an open or short circuit.

Result:

NG

CHECK CRANKSHAFT POSITION SENSOR CIRCUIT:  DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent [12/2012 - ]

Result:

OK

See step  43

1. Check the harnesses and connectors, referring to DTC P0351 procedure.

   Refer to PROCEDURE - Step 2 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 2 [10/2015 - 08/2017] , or refer to PROCEDURE - Step 2 [08/2017 - ]

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

CHECK IGNITION COIL POWER SOURCE CIRCUIT:  PROCEDURE - Step 2 [12/2012 - 10/2015]  ,  PROCEDURE - Step 2 [10/2015 - 08/2017]  ,  PROCEDURE - Step 2 [08/2017 - ]

Result:

OK

See step  44

1. Check the harnesses and connectors, referring to DTC P0351 procedure.

   Refer to PROCEDURE - Step 3 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 3 [10/2015 - 08/2017] , or refer to PROCEDURE - Step 5 [08/2017 - ]

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.
   • If the wire harness is normal, after replacing the ignition coil assembly, check if engine starting trouble occurs again. If engine starting trouble occurs again, proceed to step 62 and perform troubleshooting for the ignition system (steps 74 to 82).
   • Perform "Inspection After Repair" after replacing the ignition coil assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

OK

REPLACE IGNITION COIL ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

4. When performing the Active Test, check for an operating sound from the fuel pump.

   OK

   Control the Fuel Pump / Speed	Specified Condition
   ON	Operating sound heard
   OFF	Operating sound not heard

   HINT:

   Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.

Result:

NG

CHECK FUEL PUMP CONTROL CIRCUIT:  Fuel Pump Control Circuit [12/2012 - 08/2017]  ,  Fuel Pump Control Circuit [08/2017 - ]

Result:

OK

See step  46

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

5. When performing the Active Test, check for fuel leakage from the fuel pipes.

   Result

   Result	Proceed to
   Fuel leakage or signs of fuel leakage are present	A
   No fuel leakage or signs of fuel leakage	B

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.
   • If there are no fuel leaks, after inspecting the fuel pump control system, check if engine starting trouble occurs again. If engine starting trouble occurs again, proceed to step 62 and perform fuel system troubleshooting C (steps 63 to 66, 72).

Result:

A

REPAIR OR REPLACE FUEL LINE

Result:

B

CHECK FUEL PUMP CONTROL CIRCUIT:  Fuel Pump Control Circuit [12/2012 - 08/2017]  ,  Fuel Pump Control Circuit [08/2017 - ]

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Engine Speed.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Engine Speed

5. Start the engine.
6. While running the engine, read the [Engine Speed] value.

   OK

   A value that matches the actual engine speed is constantly output.

   HINT:

   • Check the engine speed using a line graph.
   • If the engine cannot be started, check the engine speed while cranking the engine.
   • If the engine speed is 0 rpm, the crankshaft position sensor may have an open or short circuit.

Result:

NG

REPLACE CRANKSHAFT POSITION SENSOR:  REMOVAL [12/2012 - ]

Result:

OK

See step  48

1. Check the harnesses and connectors, referring to DTC P0300 procedure.

   Refer to PROCEDURE - Step 10 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 10 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 27 [08/2016 - ]

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

OK

REPLACE ECM:  REMOVAL [12/2012 - ]

Result:

NG

CHECK FUEL INJECTOR CIRCUIT:  Fuel Injector Circuit [12/2012 - 08/2017]  ,  Fuel Injector Circuit [08/2017 - ]

1. Inspect the engine coolant temperature sensor.

   Refer to INSPECTION [12/2012 - ]

   HINT:

   • If the engine coolant temperature sensor is malfunctioning, after replacing it, check if engine starting trouble occurs again. If engine starting trouble occurs, replace the ECM. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

     Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE ENGINE COOLANT TEMPERATURE SENSOR:  REMOVAL [12/2012 - ]

Result:

OK

See step  50

1. Check the harnesses and connectors, referring to DTC P0115 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.
   • If the wire harness or connector is malfunctioning, after replacing or repairing it, check if engine starting trouble occurs again. If engine starting trouble occurs, replace the ECM. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  51

1. Inspect the mass air flow meter sub-assembly.

   Refer to ON-VEHICLE INSPECTION [12/2012 - ]

   HINT:

   • If the mass air flow meter sub-assembly is malfunctioning, after replacing it, check if engine starting trouble occurs again. If engine starting trouble occurs, replace the ECM. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE MASS AIR FLOW METER SUB-ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

OK

See step  52

1. Check the harnesses and connectors, referring to DTC P0102 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.
   • If the wire harness or connector is malfunctioning, after replacing or repairing it, check if engine starting trouble occurs again. If engine starting trouble occurs, replace the ECM. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  53

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas AF Control / Long FT #1 and Atmosphere Pressure.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Atmosphere Pressure
   Long FT #1

   Result

   Data List Item	Result	Suspected Area	Proceed to
   Long FT #1	+25% or more or less than -25%	Air fuel ratio sensor (sensor 1) Heated oxygen sensor (sensor 2) Mass air flow meter sub-assembly Fuel injector assembly ECM	A
   Atmosphere Pressure	80 kPa(abs) [600 mmHg(abs)] or less (when altitude is 0 m [0 ft.])
   Both Data List items listed above	Values are other than above	-	B

Result:

B

See step  57

Result:

A

See step  54

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Utility / Learning Value Reset.
5. Confirm the following conditions as instructed on the screen.
   1. - Ignition switch ON
   2. - Engine stopped
   3. - Battery voltage 9 V or higher
6. After confirming, select "Next" and initialize the learn value.

   HINT:

   If a message indicating learned value initialization failure is displayed on the screen, confirm the execution conditions, and perform learned value initialization again.

7. Check if the engine can be started.

   Result

   Result	Proceed to
   Engine can be started	A
   Engine cannot be started	B

Result:

B

See step  57

Result:

A

See step  55

1. Connect the Techstream to the DLC3.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Start the engine.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas AF Control / Fuel System Status #1.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Fuel System Status #1

5. Confirm that Fuel System Status #1 is CL.
6. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas AF Control / AF Lambda B1S1.

   Powertrain > Engine and ECT > Data List

   Tester Display
   AF Lambda B1S1

7. Confirm that AF Lambda B1S1 is within the range of 0.95 to 1.05 when idling.
8. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor / Gas AF Control / AFS Voltage B1S1 and O2S B1S2.

   Powertrain > Engine and ECT > Active Test

   Active Test Display
   Control the Injection Volume for A/F Sensor

   Data List Display
   AFS Voltage B1S1
   O2S B1S2

9. Read the output voltage from the air fuel ratio sensor when increasing and decreasing the fuel injection volume.

   Standard

   Techstream Display	Injection Volume	Specified Condition
   AFS Voltage B1S1	+12.5%	Air fuel ratio sensor output voltage is below 3.1 V
   	-12.5%	Air fuel ratio sensor output voltage is higher than 3.4 V

   Result

   Result	Proceed to
   Normal	A
   Abnormal	B

   HINT:

   • The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
   • If the air fuel ratio sensor is malfunctioning, after replacing it, check if engine starting trouble occurs again. If engine starting trouble occurs, replace the ECM. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

     Refer to INITIALIZATION [12/2012 - ]

Result:

B

REPLACE AIR FUEL RATIO SENSOR:  REMOVAL [12/2012 - ]

Result:

A

See step  56

1. Check if the idle speed is stable after starting the engine.

   OK

   Engine speed is stable.

   HINT:

   • After replacing the fuel injector assembly or mass air flow meter sub-assembly, check if engine starting trouble occurs again. If engine starting trouble occurs, replace the ECM. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • Perform "Inspection After Repair" after replacing the fuel injector assembly or mass air flow meter sub-assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

OK

REPLACE MASS AIR FLOW METER SUB-ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

NG

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

1. Check the fuel pressure.

   Refer to PROCEDURE - Step 2

Result:

NG

See step  73

Result:

OK

See step  58

1. Inspect the spark plugs.

   Refer to PROCEDURE - Step 3

   Result

   Result	Proceed to
   All cylinders are normal	A
   One cylinder is abnormal*1	B
   All cylinders are abnormal*2, *3	C

   HINT:

   • *1: If one cylinder is abnormal, replace the spark plug of that cylinder and inspect the ignition and fuel system for that cylinder. After performing repairs, check if engine starting trouble occurs again. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • *2: If all cylinders are abnormal, replace the spark plugs of all cylinders and check if engine starting trouble occurs again. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • *3: Engine starting trouble may occur if the vehicle is driven extremely short distances repeatedly.
   • Perform "Inspection After Repair" after replacing the spark plug.

     Refer to INITIALIZATION [12/2012 - ]

Result:

B

REPLACE SPARK PLUG (ABNORMAL CYLINDER):  REMOVAL [12/2012 - ]

Result:

C

REPLACE SPARK PLUG (ALL CYLINDER):  REMOVAL [12/2012 - ]

Result:

A

See step  59

1. Confirm the conditions present when the malfunction occurred based on the customer problem analysis.

   Result

   Problem Symptom	Suspected Area	Proceed to
   When the engine is stopped and a long time has passed, engine starting trouble occurs*1	Fuel pressure regulator is stuck open	A
   When the engine is stopped and approximately 15 to 120 minutes have passed, engine starting trouble occurs*2	Fuel injector assembly leak	B
   When the engine is stopped and approximately 2 to 3 minutes have passed, engine starting trouble occurs*3	Failure to maintain fuel pressure by fuel pressure regulator	A
   Condition other than above, or there is an inconsistency in the conditions present when engine starting trouble occurs	-	C *4

   HINT:

   *1: The fuel pressure regulator may be stuck open. Attach a fuel pressure gauge and check the ability to maintain fuel pressure after stopping the engine.

   *2: Fuel may be leaking from a fuel injector assembly.

   *3: The fuel pressure regulator may not be able to maintain the fuel pressure. Attach a fuel pressure gauge and check the ability to maintain fuel pressure after stopping the engine.

   *4: From step 62, perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.

Result:

B

See step  61

Result:

C

See step  62

Result:

A

See step  60

HINT:

For the fuel pressure inspection, refer to the following procedures.

Refer to PROCEDURE - Step 2

1. Attach a fuel pressure gauge and check the fuel pressure after stopping the engine.

   Standard

   147 kPa (1.5 kgf/cm² , 21 psi) or higher (5 minutes after stopping the engine)

   Result

   Result	Proceed to
   Abnormal	A
   Normal	B *1

   HINT:

   • If the engine cannot be started, read the values after cranking the engine.
   • *1: From step 62, perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.

Result:

A

REPLACE FUEL PRESSURE REGULATOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  62

1. Clean the inside of the surge tank with compressed air.
2. After stopping the engine, measure the HC concentration inside the surge tank for 15 minutes.

   Result

   Result	Proceed to
   4000 ppm or higher	A
   Less than 4000 ppm	B *1

   HINT:

   • If the concentration is 4000 ppm or higher, a fuel injector assembly may have a sealing problem.
   • *1: From step 62, perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.
   • Perform "Inspection After Repair" after replacing the fuel injector assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

A

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  62

1. If the malfunction could not be identified during the inspection in steps 38, 39, 40 and 46, perform fuel system troubleshooting C (steps 63 to 66, 72).

   Result

   Performed Step	Troubleshooting by System	Procedure	Proceed to
   Steps 38, 39, 40 and 46	Fuel system troubleshooting C	63 to 66, 72	A

2. If the malfunction could not be identified during the inspection in step 44, perform ignition system troubleshooting (steps 74 to 82).

   Result

   Performed Step	Troubleshooting by System	Procedure	Proceed to
   Step 44	Ignition system troubleshooting	74 to 82	B

3. If the malfunction could not be identified during the inspection in steps 71 and 92, perform intake air system troubleshooting (steps 83 to 85). If engine starting trouble still occurs, perform fuel system troubleshooting A (steps 86 to 91, 93, 94).

   Result

   Performed Step	Troubleshooting by System	Procedure	Proceed to
   Step 71 and 92	Intake air system troubleshooting	83 to 85	C
   	Fuel system troubleshooting A	86 to 91, 93, 94

4. If the malfunction could not be identified during the inspection in steps 49, 50, 51, 52, 55, 56, 58, 59, 60, 61 and 73, perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake air system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.

   Result

   Performed Step	Troubleshooting by System	Procedure	Proceed to
   Steps 49, 50, 51, 52, 55, 56, 58, 59, 60, 61 and 73	Fuel system troubleshooting A	95 to 102	D
   	Fuel system troubleshooting B	103 to 105
   	Intake air system troubleshooting	106 to 108
   	Ignition system troubleshooting	109 to 117

Result:

B

See step  74

Result:

C

See step  83

Result:

D

See step  95

Result:

A

See step  63

1. Inspect the fuel injector assemblies.

   Refer to INSPECTION [12/2012 - ]

   HINT:

   Perform "Inspection After Repair" after replacing the fuel injector assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

OK

See step  64

1. Check the harnesses and connectors, referring to DTC P0300 procedure.

   Refer to PROCEDURE - Step 10 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 10 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 27 [08/2016 - ]

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

CHECK FUEL INJECTOR CIRCUIT:  Fuel Injector Circuit [12/2012 - 08/2017]  ,  Fuel Injector Circuit [08/2017 - ]

Result:

OK

See step  65

1. Replace the crankshaft position sensor.

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

Result:

NG

See step  66

1. Replace the camshaft position sensor (for intake camshaft).

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT) IS DEFECTIVE)

Result:

NG

See step  72

1. Inspect the mass air flow meter sub-assembly.

   Refer to ON-VEHICLE INSPECTION [12/2012 - ]

   HINT:

   Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

See step  92

Result:

OK

See step  68

1. Check for air leaks in the intake system (vacuum hose disconnection, cracks, damaged gaskets, etc.).

   Refer to PROCEDURE - Step 1

   HINT:

   • If the accelerator pedal is released after racing the engine, the inspection is easier to perform because the vacuum inside the intake manifold increases and the air suction noise becomes louder.
   • If Short FT #1 and Long FT #1 are largely different from the normal values (differ by higher than 15%) when idling (intake air volume is small) and almost the same as the normal values when racing the engine (for example, when maintaining a speed of 3000 rpm) (intake air volume is high), air leakage may be present.

   OK

   There is no air leakage.

   HINT:

   Perform "Inspection After Repair" after repairing or replacing the intake system.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPAIR OR REPLACE INTAKE SYSTEM

Result:

OK

See step  69

1. Disconnect the throttle with motor body assembly connector.

   HINT:

   When the connector is disconnected, the vehicle enters fail-safe mode and the throttle valve opening angle is 4 to 7°.

2. Crank the engine and check that it starts.

   Result

   Result	Proceed to
   Engine starts	A
   Engine does not start	B

   HINT:

   When this inspection is performed, the MIL may illuminate. After finishing the inspection, check and clear the DTCs.

   Refer to DTC CHECK / CLEAR [12/2012 - ]

Result:

B

See step  71

Result:

A

See step  70

1. Check if carbon is in the air flow passage.

   OK

   No carbon present.

   HINT:

   Perform "Inspection After Repair" after cleaning the throttle with motor body assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REMOVE FOREIGN OBJECT AND CLEAN THROTTLE WITH MOTOR BODY ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

OK

See step  71

1. Operate the VVT system through the Active Test, and check if the VVT system is operating normally.
   1. Perform the Active Test, referring to DTC P0011 procedure (VVT system for intake camshaft).

      Refer to PROCEDURE - Step 2 [12/2012 - 08/2016] , or refer to DTC P0011: Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 1); DTC P0012: Camshaft Position "A" - Timing Over-Retarded (Bank 1) [08/2016 - ]

   2. Perform the Active Test, referring to DTC P0014 procedure (VVT system for exhaust camshaft).

      Refer to PROCEDURE - Step 2 [12/2012 - 08/2016] , or refer to DTC P0014: Camshaft Position "B" - Timing Over-Advanced or System Performance (Bank 1); DTC P0015: Camshaft Position "B" - Timing Over-Retarded (Bank 1) [08/2016 - ]

   Result

   Result	Proceed to
   NG	A
   OK	B

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • When the results of the inspection using the Active Test are normal but the valve operating noise is abnormal, check the valve for any signs of problems.
   • *1: From step 62, perform intake system troubleshooting (steps 83 to 85). If engine starting trouble still occurs, perform fuel system troubleshooting A (steps 86 to 91, 93, 94).

Result:

A

REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE OR EXHAUST CAMSHAFT):  REMOVAL [12/2012 - ]

Result:

B

See step  62

1. Replace the camshaft position sensor (for exhaust camshaft).

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) IS DEFECTIVE)

Result:

NG

REPLACE ECM:  REMOVAL [12/2012 - ]

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

5. When performing the Active Test, check for fuel leakage from the fuel pipes.

   Result

   Result	Proceed to
   Fuel leakage or signs of fuel leakage are present	A
   No fuel leakage or signs of fuel leakage	B

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.
   • If there are no fuel leaks, after inspecting the fuel pump control system, check if engine starting trouble occurs again. If engine starting trouble still occurs, proceed to step 62 and perform fuel system troubleshooting A (steps 95 to 102), fuel system troubleshooting B (steps 103 to 105), intake system troubleshooting (steps 106 to 108), and ignition system troubleshooting (steps 109 to 117), in that order.

Result:

A

REPAIR OR REPLACE FUEL LINE

Result:

B

CHECK FUEL PUMP CONTROL CIRCUIT:  Fuel Pump Control Circuit [12/2012 - 08/2017]  ,  Fuel Pump Control Circuit [08/2017 - ]

1. Check the tightening and installation condition of the crankshaft position sensor bolt.
2. Check the connection of the crankshaft position sensor connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR:  INSTALLATION [12/2012 - 10/2015]  ,  INSTALLATION [10/2015 - ]

Result:

OK

See step  75

1. Check the tightening and installation condition of the camshaft position sensor (for intake camshaft) bolt.
2. Check the connection of the camshaft position sensor (for intake camshaft) connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR (FOR INTAKE CAMSHAFT):  INSTALLATION [12/2012 - ]

Result:

OK

See step  76

1. Check the tightening and installation condition of the camshaft position sensor (for exhaust camshaft) bolt.
2. Check the connection of the camshaft position sensor (for exhaust camshaft) connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR (FOR EXHAUST CAMSHAFT):  INSTALLATION [12/2012 - ]

Result:

OK

See step  77

1. Check the harnesses and connectors, referring to DTC P0335 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  78

1. Check the harnesses and connectors, referring to DTC P0340 procedure.

   Refer to PROCEDURE - Step 2

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  79

1. Check the harnesses and connectors, referring to DTC P0365 procedure.

   Refer to PROCEDURE - Step 2

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  80

1. Replace the crankshaft position sensor.

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

Result:

NG

See step  81

1. Replace the camshaft position sensor (for intake camshaft).

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT) IS DEFECTIVE)

Result:

NG

See step  82

1. Replace the camshaft position sensor (for exhaust camshaft).

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) IS DEFECTIVE)

Result:

NG

REPLACE ECM:  REMOVAL [12/2012 - ]

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / ISC Learning Value.

   Powertrain > Engine and ECT > Data List

   Tester Display
   ISC Learning Value

5. Start the engine and warm it up until the engine coolant temperature stabilizes with the A/C switch and all the accessory switches off.

   Result

   Data List Item	Result	Suspected Area	Proceed to
   ISC Learning Value	(engine displacement (liters) x 0.9) or higher	Valve timing Compression	A
   	Less than (engine displacement (liters) x 0.9)	-	B

Result:

B

See step  85

Result:

A

See step  84

1. Check the compression.

   Refer to PROCEDURE - Step 10

   HINT:

   Perform "Inspection After Repair" after replacing the engine assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

OK

ADJUST VALVE TIMING:  REASSEMBLY [12/2012 - 08/2017]  ,  REASSEMBLY [08/2017 - ]

Result:

NG

CHECK AND REPAIR ENGINE ASSEMBLY

1. Inspect the engine coolant temperature sensor.

   Refer to INSPECTION [12/2012 - ]

   HINT:

   Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE ENGINE COOLANT TEMPERATURE SENSOR:  REMOVAL [12/2012 - ]

Result:

OK

See step  86

HINT:

For the fuel pressure inspection, refer to the following procedures.

Refer to PROCEDURE - Step 2

1. Attach a fuel pressure gauge and check the fuel pressure when cranking the engine and after stopping the engine.

   Standard

   Vehicle State	Specified Condition
   Cranking engine	304 kPa (3.1 kgf/cm2 , 44 psi) to 343 kPa (3.5 kgf/cm2 , 50 psi)
   5 minutes after stopping engine	147 kPa (1.5 kgf/cm2 , 21 psi) or higher

Result:

NG

See step  93

Result:

OK

See step  87

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas AF Control / Long FT #1.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Long FT #1

   Result

   Data List Item	Result	Suspected Area	Proceed to
   Long FT #1	-15 to +15%	Wire harness or connector Fuel	A
   	+15% or higher, or less than -15%	Fuel injector assembly	B

   HINT:

   Perform "Inspection After Repair" after replacing the fuel injector assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

B

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

A

See step  88

1. Check if the idle speed after starting the engine is currently stable and has always been stable in the past.

   Result

   Problem Symptom	Suspected Area	Proceed to
   Current unstable idle speed or history of unstable idle speed	Crankshaft position sensor system	A
   All current and past idle speeds are stable	Fuel	B

   HINT:

   Through the customer problem analysis, confirm the fuel being used and the location at which the fuel was added to check if the malfunction is caused by the fuel in the vehicle.

Result:

B

REPLACE FUEL

Result:

A

See step  89

1. Check the tightening and installation condition of the crankshaft position sensor bolt.
2. Check the connection of the crankshaft position sensor connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR:  INSTALLATION [12/2012 - 10/2015]  ,  INSTALLATION [10/2015 - ]

Result:

OK

See step  90

1. Check the harnesses and connectors, referring to DTC P0335 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  91

1. Replace the crankshaft position sensor.

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

Result:

NG

REPLACE ECM:  REMOVAL [12/2012 - ]

1. Check the harnesses and connectors, referring to DTC P0102 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.
   • If the wire harness is normal, after replacing the mass air flow meter sub-assembly, check if engine starting trouble occurs again. If engine starting trouble occurs again, proceed to step 62 and perform intake system troubleshooting (steps 83 to 85). If engine starting trouble still occurs, perform fuel system troubleshooting A (steps 86 to 91, 93, 94).
   • Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

OK

REPLACE MASS AIR FLOW METER SUB-ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

5. When performing the Active Test, check for fuel leakage from the fuel pipes.

   Result

   Result	Proceed to
   Fuel leakage or signs of fuel leakage are present	A
   No fuel leakage or signs of fuel leakage	B

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • When performing the Active Test, if there is no operating noise from the fuel pump, the fuel pump system may be malfunctioning.
   • Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.

Result:

A

REPAIR OR REPLACE FUEL LINE

Result:

B

See step  94

1. Inspect the fuel pump.

   Refer to INSPECTION [12/2012 - ]

   HINT:

   • Make sure there is no foreign matter such as iron particles on the fuel pump and no signs that the fuel pump was stuck.
   • Make sure the internal connector is securely connected.
   • Make sure the fuel pump filter is not clogged.
   • Perform "Inspection After Repair" after replacing the fuel pump.

     Refer to INITIALIZATION [12/2012 - ]

Result:

OK

REPLACE FUEL PRESSURE REGULATOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

NG

REPLACE FUEL PUMP:  REMOVAL [12/2012 - ]

HINT:

For the fuel pressure inspection, refer to the following procedures.

Refer to PROCEDURE - Step 2

1. Attach a fuel pressure gauge and check the fuel pressure after stopping the engine.

   Standard

   147 kPa (1.5 kgf/cm² , 21 psi) or higher (5 minutes after stopping the engine)

   HINT:

   If the engine cannot be started, read the values after cranking the engine.

   Result

   Result	Proceed to
   Normal	A
   Abnormal	B

Result:

B

See step  101

Result:

A

See step  96

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Gas AF Control / Long FT #1.

   Powertrain > Engine and ECT > Data List

   Tester Display
   Long FT #1

   Result

   Data List Item	Result	Suspected Area	Proceed to
   Long FT #1	-15 to +15%	Wire harness or connector Fuel	A
   	+15% or higher, or less than -15%	Fuel injector assembly	B

   HINT:

   Perform "Inspection After Repair" after replacing the fuel injector assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

B

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

A

See step  97

1. Check if the idle speed after starting the engine is currently stable and has always been stable in the past.

   Result

   Problem Symptom	Suspected Area	Proceed to
   Current unstable idle speed or history of unstable idle speed	Crankshaft position sensor system	A
   All current and past idle speeds are stable	Fuel	B

   HINT:

   Through the customer problem analysis, confirm the fuel being used and the location at which the fuel was added to check if the malfunction is caused by the fuel in the vehicle.

Result:

B

REPLACE FUEL

Result:

A

See step  98

1. Check the tightening and installation condition of the crankshaft position sensor bolt.
2. Check the connection of the crankshaft position sensor connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR:  INSTALLATION [12/2012 - 10/2015]  ,  INSTALLATION [10/2015 - ]

Result:

OK

See step  99

1. Check the harnesses and connectors, referring to DTC P0335 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  100

1. Replace the crankshaft position sensor.

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

Result:

NG

REPLACE ECM:  REMOVAL [12/2012 - ]

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
   • w/ Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

   • w/o Fuel Pump Control ECU Assembly

   Powertrain > Engine and ECT > Active Test

   Tester Display
   Control the Fuel Pump / Speed

5. When performing the Active Test, check for fuel leakage from the fuel pipes.

   Result

   Result	Proceed to
   Fuel leakage or signs of fuel leakage are present	A
   No fuel leakage or signs of fuel leakage	B

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • When performing the Active Test, if there is no operating noise from the fuel pump, the fuel pump system may be malfunctioning.
   • Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.

Result:

A

REPAIR OR REPLACE FUEL LINE

Result:

B

See step  102

1. Inspect the fuel pump.

   Refer to INSPECTION [12/2012 - ]

   HINT:

   • Make sure there is no foreign matter such as iron particles on the fuel pump and no signs that the fuel pump was stuck.
   • Make sure the internal connector is securely connected.
   • Make sure the fuel pump filter is not clogged.
   • Perform "Inspection After Repair" after replacing the fuel pump.

     Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE FUEL PUMP:  REMOVAL [12/2012 - ]

Result:

OK

See step  103

1. Disconnect the fuel vapor feed hose (on the canister side) of the purge VSV.

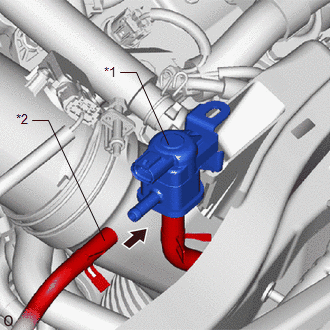

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Purge VSV
   *2	Fuel Vapor Feed Hose (to Canister)

2. Start the engine.
3. Idle the engine.
4. Disconnect the connector of the purge VSV.
5. Check if air flows through the purge VSV.

   OK

   Air does not flow

   HINT:

   When this inspection is performed, the MIL may illuminate. After finishing the inspection, check and clear the DTCs.

   Refer to DTC CHECK / CLEAR [12/2012 - ]

Result:

NG

INSPECT PURGE VSV:  INSPECTION [12/2012 - ]

Result:

OK

See step  104

1. Clean the inside of the surge tank with compressed air.
2. After stopping the engine, measure the HC concentration inside the surge tank for 15 minutes.

   Result

   Result	Proceed to
   4000 ppm or higher	A
   Less than 4000 ppm	B

   HINT:

   • If the concentration is 4000 ppm or higher, a fuel injector assembly may have a sealing problem.
   • Perform "Inspection After Repair" after replacing the fuel injector assembly.

     Refer to INITIALIZATION [12/2012 - ]

Result:

A

REPLACE FUEL INJECTOR ASSEMBLY:  REMOVAL [12/2012 - ]

Result:

B

See step  105

1. Check if carbon is on the intake valves.

   Result

   Result	Proceed to
   Carbon present	A
   No carbon present	B

Result:

A

CLEAN INTAKE VALVE

Result:

B

See step  106

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / ISC Learning Value.

   Powertrain > Engine and ECT > Data List

   Tester Display
   ISC Learning Value

5. Start the engine and warm it up until the engine coolant temperature stabilizes with the A/C switch and all the accessory switches off.

   Result

   Data List Item	Result	Suspected Area	Proceed to
   ISC Learning Value	(engine displacement (liters) x 0.9) or more	Valve timing Compression	A
   	Less than (engine displacement (liters) x 0.9)	-	B

Result:

B

See step  108

Result:

A

See step  107

1. Check the compression.

   Refer to PROCEDURE - Step 10

   HINT:

   Perform "Inspection After Repair" after replacing the engine assembly.

   Refer to INITIALIZATION [12/2012 - ]

Result:

OK

ADJUST VALVE TIMING:  REASSEMBLY [12/2012 - 08/2017]  ,  REASSEMBLY [08/2017 - ]

Result:

NG

CHECK AND REPAIR ENGINE ASSEMBLY

1. Inspect the engine coolant temperature sensor.

   Refer to INSPECTION [12/2012 - ]

   HINT:

   Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

   Refer to INITIALIZATION [12/2012 - ]

Result:

NG

REPLACE ENGINE COOLANT TEMPERATURE SENSOR:  REMOVAL [12/2012 - ]

Result:

OK

See step  109

1. Check the tightening and installation condition of the crankshaft position sensor bolt.
2. Check the connection of the crankshaft position sensor connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR:  INSTALLATION [12/2012 - 10/2015]  ,  INSTALLATION [10/2015 - ]

Result:

OK

See step  110

1. Check the tightening and installation condition of the camshaft position sensor (for intake camshaft) bolt.
2. Check the connection of the camshaft position sensor (for intake camshaft) connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR (FOR INTAKE CAMSHAFT):  INSTALLATION [12/2012 - ]

Result:

OK

See step  111

1. Check the tightening and installation condition of the camshaft position sensor (for exhaust camshaft) bolt.
2. Check the connection of the camshaft position sensor (for exhaust camshaft) connector.

   OK

   Sensor is installed correctly.

Result:

NG

SECURELY REINSTALL SENSOR (FOR EXHAUST CAMSHAFT):  INSTALLATION [12/2012 - ]

Result:

OK

See step  112

1. Check the harnesses and connectors, referring to DTC P0335 procedure.

   Refer to PROCEDURE - Step 3

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  113

1. Check the harnesses and connectors, referring to DTC P0340 procedure.

   Refer to PROCEDURE - Step 2

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  114

1. Check the harnesses and connectors, referring to DTC P0365 procedure.

   Refer to PROCEDURE - Step 2

   HINT:

   • Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
   • Make sure there is not an excessive amount of force applied to the wire harness.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  115

1. Replace the crankshaft position sensor.

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

Result:

NG

See step  116

1. Replace the camshaft position sensor (for intake camshaft).

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT) IS DEFECTIVE)

Result:

NG

See step  117

1. Replace the camshaft position sensor (for exhaust camshaft).

   Refer to REMOVAL [12/2012 - ]

2. Check the engine start operation.

   OK

   Malfunction has been repaired successfully.

Result:

OK

END (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) IS DEFECTIVE)

Result:

NG

REPLACE ECM:  REMOVAL [12/2012 - ]
