Removal [11/2014 - ]

REMOVE POWER STEERING ECU ASSEMBLY
Refer to REMOVAL [11/2014 - ]
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL [11/2014 - ] - Step 20
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL [11/2014 - ] - Step 25
REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY . Refer to REMOVAL [11/2014 - ] - Step 14
REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY . Refer to REMOVAL [11/2014 - ] - Step 4
REMOVE STOP LIGHT SWITCH ASSEMBLY . Refer to REMOVAL [11/2014 - ] - Step 2
REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

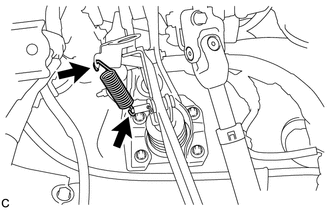

REMOVE BRAKE PEDAL RETURN SPRING
1. Remove the brake pedal return spring from the brake pedal support assembly and push rod pin.

  Fig 1: Identifying Brake Pedal Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

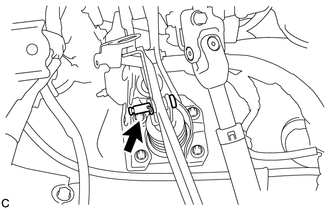

REMOVE PUSH ROD PIN
1. Remove the clip and push rod pin to separate the brake pedal support assembly from the push rod clevis.

  Fig 2: Identifying Push Rod Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

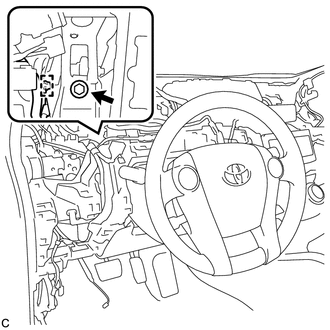

1. Disengage the clamp from the brake pedal support assembly.

  Fig 3: Identifying Brake Pedal Support Assembly Clamp & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement.

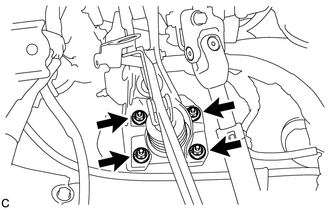

3. Remove the 4 nuts and brake pedal support assembly.

  Fig 4: Identifying Brake Pedal Support Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

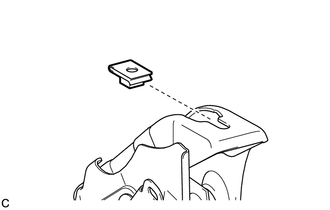

4. Remove the nut from the brake pedal support assembly.

  Fig 5: Identifying Speed Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE PEDAL PAD
