Removal [11/2016 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE RADIATOR SIDE DEFLECTOR SEAL LH
Refer to PROCEDURE - Step 1
- REMOVE RADIATOR SIDE SEAL RH
Refer to PROCEDURE - Step 2
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 3
- REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

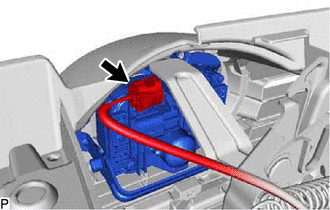

- Disconnect the connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 bolts and 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Bolt |
 |
Screw |
- Disengage the 2 guides and remove the millimeter wave radar sensor assembly.
NOTE:
Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
