Removal [12/2016 - ]: Procedure

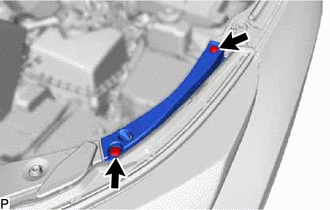

1. Remove the 2 clips and radiator side deflector seal LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 clips and radiator side seal RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

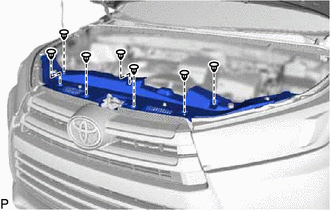

1. Remove the 7 clips and cool air intake duct seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Disengage the clamp.

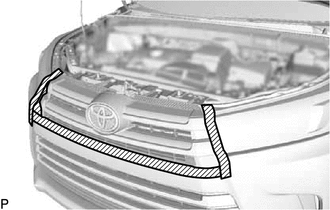

3. Apply protective tape around the radiator grille assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

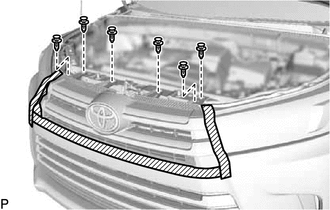

4. Remove the 6 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

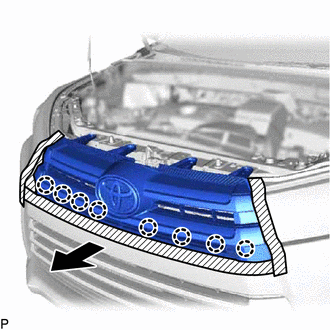

5. Disengage the 8 claws and remove the radiator grille assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 4

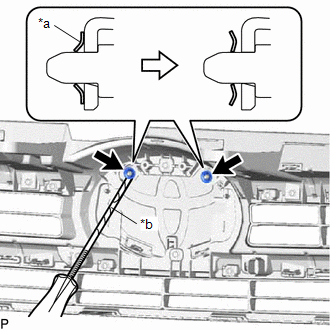

1. Using a screwdriver with its tip wrapped with protective tape, pull out the 2 spring nuts as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Spring Nut
   *b	Protective Tape

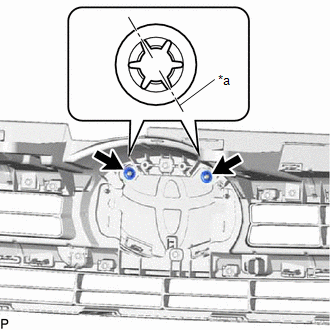

2. Using a plier nipper (side cutters), cut the 2 spring nuts at the positions shown in the illustration and remove them.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Cut

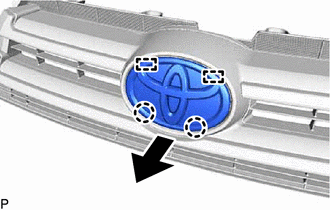

3. Disengage the 2 claws and 2 guides as shown in the illustration to remove the radiator grille (or front panel) emblem.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
