Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

Refer to PROCEDURE - Step 80

Refer to PROCEDURE - Step 81

Refer to PROCEDURE - Step 82

See step  5 See step  5

HINT:

Perform the same procedure as the LH side.

1. Remove the front stabilizer bar with 2 front stabilizer link assemblies from the front frame assembly.

Refer to PROCEDURE - Step 12

1. Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

2. Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly.

HINT:

Perform the same procedure as the LH side.

1. Remove the 2 bolts and front suspension member dynamic damper from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 front suspension member body mounting front stoppers from the front frame assembly.

1. Remove the 2 front suspension member body mounting rear stoppers from the front frame assembly.

1. Install SST as shown in the illustration.
   • SST: 09830-10010
     1. 09830-01010
     2. 09830-01040
     3. 09830-01050
   • SST: 09950-40011
     1. 09951-04020
     2. 09952-04010
     3. 09954-04010
     4. 09955-04011
     5. 09958-04011

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Front Suspension Member Body Mounting Front Cushion

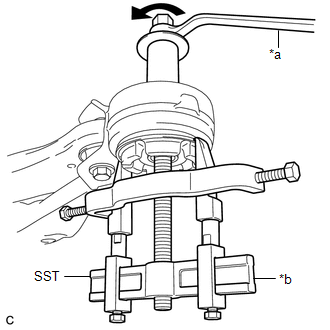

2. Using SST, remove the front suspension member body mounting front cushion from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Turn
   *b	Hold

   NOTE:

   • Make sure that the claws of SST are securely engaged to the mounting cushion.
   • Tighten SST slowly and evenly.
   • Be careful as the mounting cushion may fly out.
   • The mounting cushion cannot be reused.

1. Install SST as shown in the illustration.
   • SST: 09830-10010
     1. 09830-01010
     2. 09830-01040
     3. 09830-01050
   • SST: 09950-40011
     1. 09951-04020
     2. 09952-04010
     3. 09954-04010
     4. 09955-04011
     5. 09958-04011

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Front Suspension Member Body Mounting Rear Cushion LH

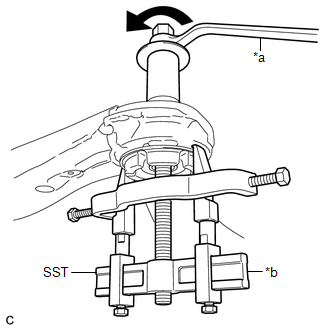

2. Using SST, remove the front suspension member body mounting rear cushion LH from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Turn
   *b	Hold

   NOTE:

   • Make sure that the claws of SST are securely engaged to the mounting cushion.
   • Tighten SST slowly and evenly.
   • Be careful as the mounting cushion may fly out.
   • The mounting cushion cannot be reused.

HINT:

Perform the same procedure as the LH side.

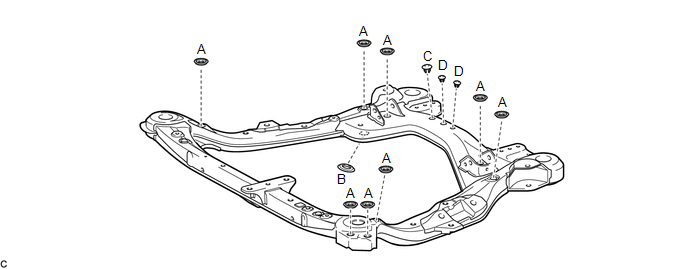

1. Remove the 12 hole plugs from the front frame assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   There are 4 different shapes of hole plug.
