DTC P321E-318: All HV Gate Blocking Range/Performance [10/2014 - 10/2015]: Procedure

Refer to PROCEDURE - Step 3

NG

CONNECT SECURELY

OK

See step  2

Refer to PROCEDURE - Step 4

NG

CONNECT SECURELY

OK

See step  3

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.

2. Disconnect the A50 inverter with converter assembly connector.
3. Disconnect the A54 power management control ECU connector.
4. Measure the resistance according to the value (s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Inverter with Converter Assembly)

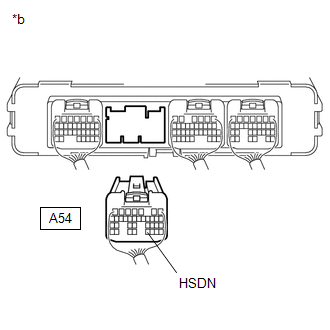

   *b	Rear view of wire harness connector (to Power Management Control ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A54-31 (HSDN) or A50-40 (HSDN) - Body ground and other terminals	Power switch off	10 kΩ or higher
   A54-31 (HSDN) - A50-40 (HSDN)	Power switch off	Below 1 Ω

5. Reconnect the A54 power management control ECU connector.
6. Reconnect the A50 inverter with converter assembly connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

See step  4

1. Check that the service plug grip is not installed.
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY), unless otherwise instructed because this may cause a malfunction.

2. Disconnect the A50 inverter with converter assembly connector.
3. Measure the resistance according to the value (s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Inverter with Converter Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A50-40 (HSDN) - A50-10 (GND1)	Power switch off	2.65 to 3.55 kΩ

4. Reconnect the A50 inverter with converter assembly connector.

OK

REPLACE POWER MANAGEMENT CONTROL ECU

(Refer to COMPONENTS [10/2014 - 10/2015] )

NG

REPLACE INVERTER WITH CONVERTER ASSEMBLY

(Refer to COMPONENTS [10/2014 - ] )
