Removal [10/2014 - ]: Procedure

See step  1

(Refer to PROCEDURE - Step 7 )

(Refer to REMOVAL [10/2014 - ] )

1. Remove the connector cover assembly (Refer to PROCEDURE - Step 4 ).
2. Check the terminal voltage (Refer to PROCEDURE - Step 5 ).
3. Install the connector cover assembly (Refer to PROCEDURE - Step 20 ).

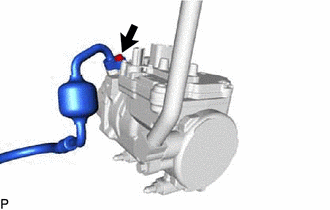

1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

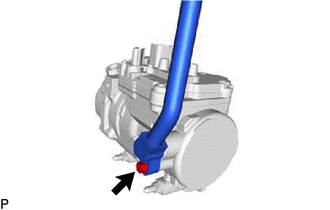

1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the suction hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

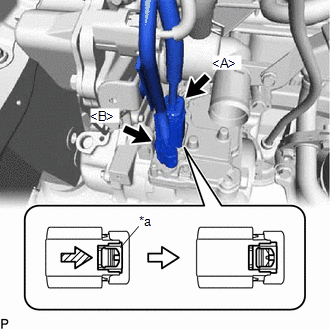

1. Using a screwdriver, slide the green-colored lock of the connector <A> as shown in the illustration to release it and disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Green-colored Lock

   WARNING:

   Make sure to wear insulating gloves.

   NOTE:

   Insulate the removed terminals and connector with insulating tape.

2. Disconnect the connector <B>.

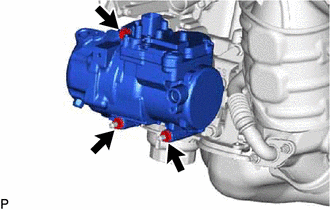

3. Remove the bolt and 2 nuts and compressor with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

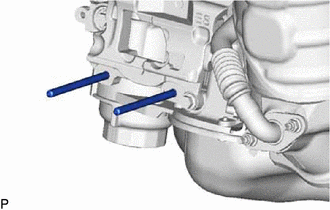

4. Using an E8 "TORX" socket, remove the 2 stud bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
