Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 6

  2. REMOVE AIR FUEL RATIO SENSOR
    1. Remove the hose clamp.

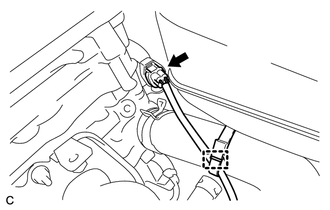

      GTY316143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor connector.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold.

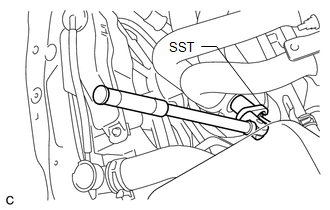

      GTY554714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
