Installation [10/2014 - ]: Procedure

  1. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
    1. Coat the splines of the front drive inboard joint assembly with ATF WS.
    2. Coat the lip of the hybrid vehicle transaxle assembly type T oil seal with MP grease.
    3. Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly LH.
      GTY203836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Face the end gap of the front drive shaft hole snap ring LH downward.
      • Do not damage the hybrid vehicle transaxle assembly type T oil seal.
      • Do not damage the front axle inboard joint boot.
      • Make sure to center the front drive shaft assembly LH during installation to prevent damage to the front drive shaft hole snap ring LH.

      HINT:

      Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.

    4. Apply a total of 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to the 8 areas shown in the illustration.
      GTY580450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Toyota Body Grease W
      NOTE:

      Do not apply grease to the serrations or installation hole of the front speed sensor.

    5. Align the matchmarks and install the front drive shaft assembly LH to the front axle hub sub-assembly.

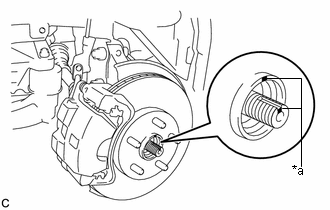

      GTY544715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
      NOTE:

      Be careful not to damage the front axle outboard joint boot or speed sensor rotor.

  2. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
    1. Coat the splines of the front drive inboard joint assembly with ATF WS.
    2. Coat the lip of the hybrid vehicle transaxle assembly type T oil seal with MP grease.
    3. Install a new bearing bracket hole snap ring to the front drive shaft assembly RH.
    4. Install the front drive shaft assembly RH.
      NOTE:
      • Do not damage the hybrid vehicle transaxle assembly type T oil seal.
      • Do not damage the front axle inboard joint boot.
      • When inserting the front drive shaft assembly RH, keep it level.
    5. Install the bearing bracket hole snap ring and a new bolt.

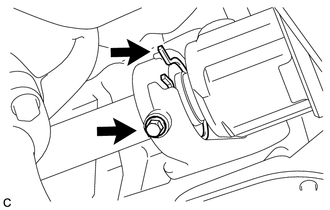

      GTY381847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 32 N*m (330 kgf*cm, 24 ft.*lbf)

    6. Apply a total of 0.1 to 0.3g (0.00353 to 0.0105 oz) of Toyota Body Grease W to the 8 areas shown in the illustration.
      GTY591776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Toyota Body Grease W
      NOTE:

      Do not apply grease to the serrations or installation hole of the front speed sensor.

    7. Align the matchmarks and install the front drive shaft assembly RH to the front axle hub sub-assembly.

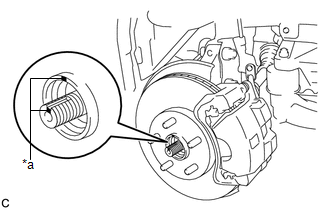

      GTY551335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
      NOTE:

      Be careful not to damage the front axle outboard joint boot or speed sensor rotor.

  3. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  4. CONNECT TIE ROD ASSEMBLY

    Refer to PROCEDURE - Step 9

  5. INSTALL FRONT SPEED SENSOR

    Refer to PROCEDURE - Step 19

  6. INSTALL FRONT STABILIZER LINK ASSEMBLY

    Refer to PROCEDURE - Step 9 . Refer to PROCEDURE - Step 13

  7. INSTALL FRONT AXLE SHAFT NUT
    1. Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.
      NOTE:
      • Be sure to perform this work even when using a new drive shaft.
      • Keep the threaded parts free of oil and foreign matter.
    2. Using a 30 mm socket wrench, install the front axle shaft nut.
      GTY203839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 294 N*m (2998 kgf*cm, 217 ft.*lbf)

      HINT:

      Keep depressing the brake pedal to prevent the front drive shaft assembly from rotating.

    3. Using a chisel and a hammer, stake the front axle shaft nut.
  8. INSTALL FRONT WHEELS

    Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)

  9. ADD HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 2

  10. INSPECT HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 1

  11. INSTALL FRONT FENDER APRON SEAL LH
  12. INSTALL FRONT FENDER APRON SEAL RH
  13. INSTALL ENGINE UNDER COVER LH
  14. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
  15. INSTALL ENGINE UNDER COVER RH
  16. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
  17. ADJUST FRONT WHEEL ALIGNMENT

    (Refer to ADJUSTMENT [10/2014 - 10/2015] or ADJUSTMENT [10/2015 - ] )

  18. CHECK FOR SPEED SENSOR SIGNAL

    (Refer to TEST MODE PROCEDURE [10/2014 - 10/2015] or TEST MODE PROCEDURE [10/2015 - ] )
