Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - 10/2015] or REMOVAL [10/2015 - ] )

1. Disengage the 2 claws to remove the sliding roof side garnish LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

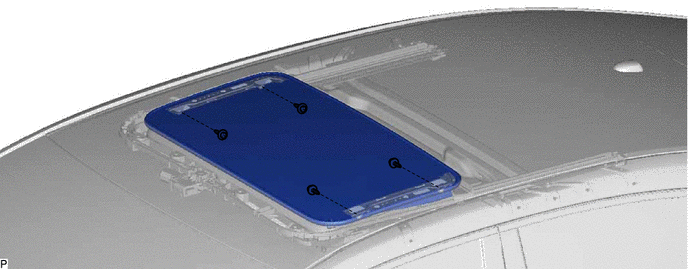

1. Using a T25 "TORX" socket wrench, remove the 4 screws and sliding roof glass sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   To prevent the sliding roof glass and sliding roof drive gear from being displaced, fully close the sliding roof glass (sliding roof drive cable), and then remove the sliding roof glass sub-assembly.

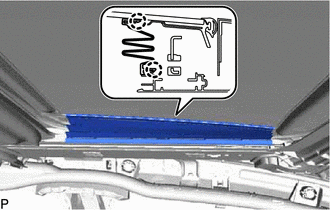

1. Remove the sliding roof weatherstrip from the sliding roof panel sub-assembly.

Refer to PROCEDURE - Step 3 and PROCEDURE - Step 3

HINT:

Use the same procedure as for the LH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

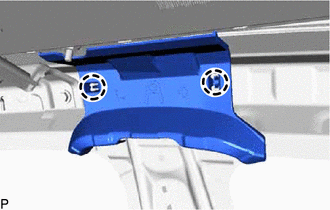

1. Disengage the 2 claws to remove the rear No. 2 side rail spacer LH.

HINT:

Use the same procedure as for the LH side.

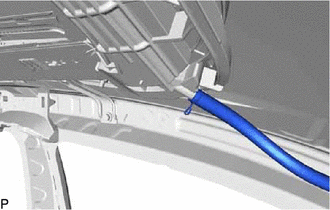

1. Expand the clip and disconnect the sliding roof drain hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the other 3 sliding roof drain hoses.

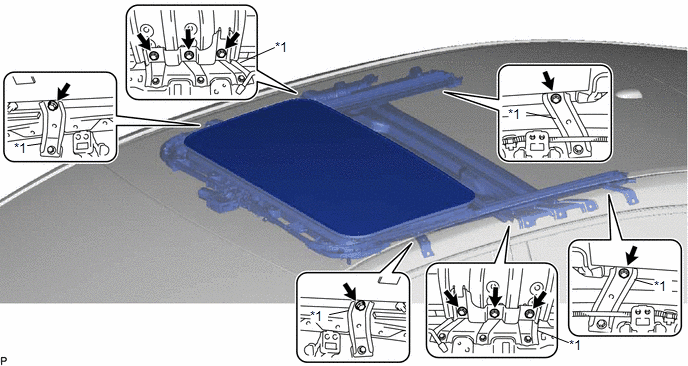

2. Loosen the 10 bolts of the brackets.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Bracket

   -

   -

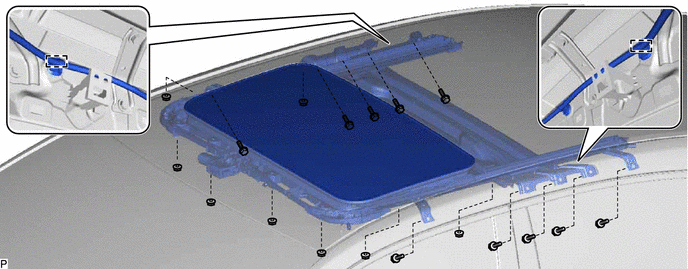

3. Disengage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the 10 bolts, 8 nuts and sliding roof housing sub-assembly.
