Removal [10/2014 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

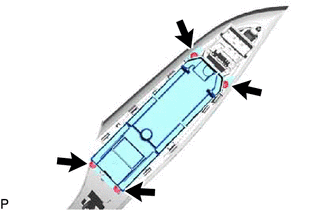

    1. Remove the 4 screws.
      GTY366649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

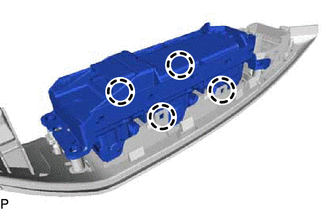

    2. Disengage the 4 claws to remove the multiplex network master switch assembly from the front upper armrest base panel.
      GTY382062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
