Removal [10/2014 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 7

  2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

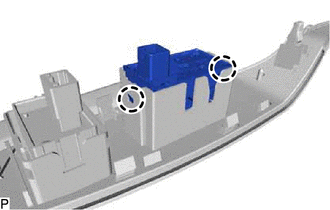

    1. Disengage the 2 claws to remove the power window regulator switch assembly from the front upper armrest base panel.
      GTY366652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
