Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 2 and PROCEDURE - Step 2

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 and PROCEDURE - Step 3

  4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 and PROCEDURE - Step 4

  5. REMOVE REFRESHING SEAT SWITCH

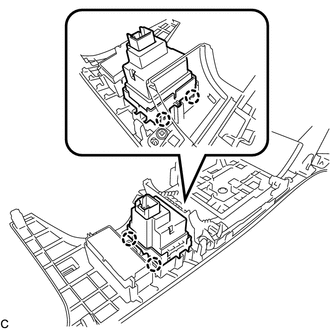

    1. Disengage the 4 claws to remove the refreshing seat switch from the rear upper console panel sub-assembly.
      GTY382072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
