Reassembly [10/2014 - 10/2015]: Procedure

  1. INSTALL SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    See step  1

  2. INSTALL BENCH TYPE REAR SEAT CUSHION COVER
    1. Temporarily install the bench type rear seat cushion cover to the bench type rear seat cushion pad.

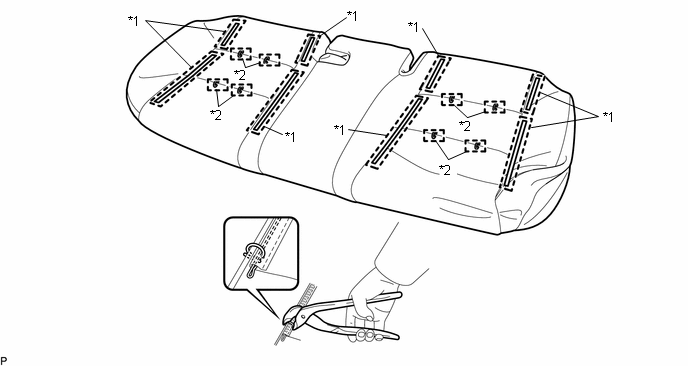

    2. Using hog ring pliers, install 8 new hog rings.
      GTY546636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fastener *2 Hog ring
      NOTE:
      • Be careful not to damage the bench type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.
    3. Engage the 8 fasteners.

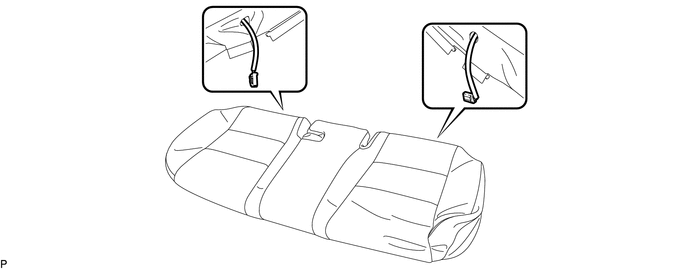

    4. w/ Seat Heater System:
      1. Pass the 2 wire harnesses through the bench type rear seat cushion cover.
        GTY574966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

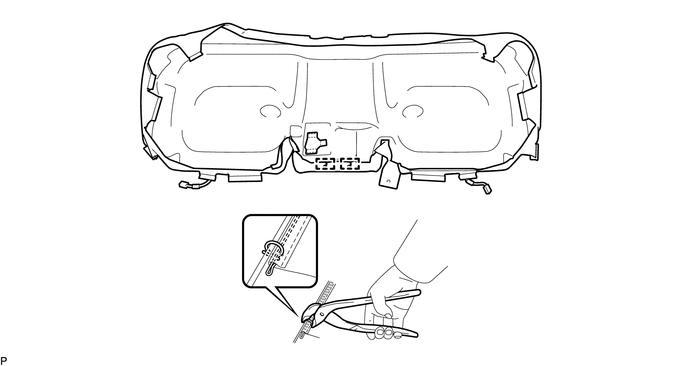

    5. Using hog ring pliers, install the bench type rear seat cushion cover to the bench type rear seat cushion pad with 2 new hog rings.
      GTY382812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the bench type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seat cushion cover.

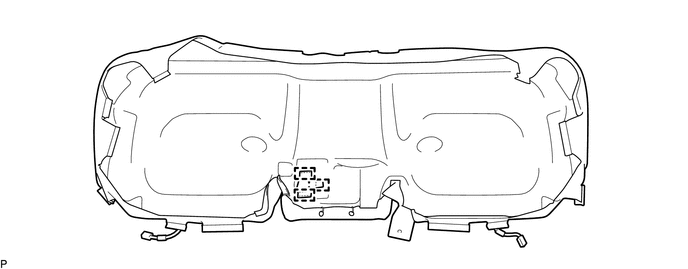

    6. Engage the 3 hooks.
      GTY574940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

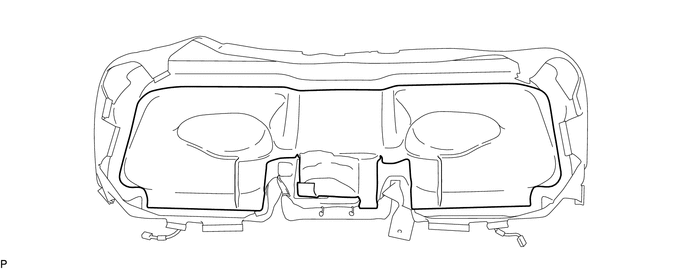

    7. w/ Rear Seat Cushion Mat:
      1. Install the rear seat cushion mat.
        GTY605652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SEAT CUSHION FRAME SUB-ASSEMBLY

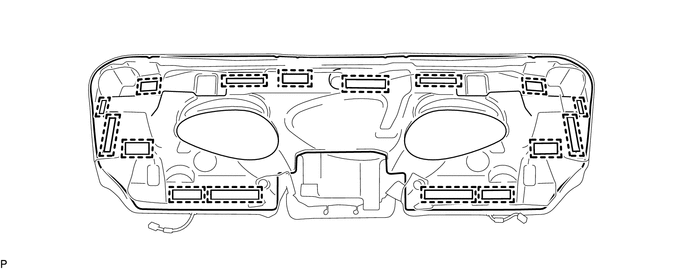

    1. Engage the 16 hooks to install the rear seat cushion frame sub-assembly.
      GTY574942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

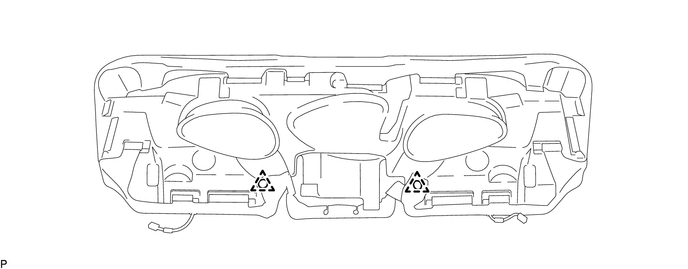

    2. Install the 2 clips.
      GTY574941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    See step  1

  5. INSTALL BENCH TYPE REAR SEATBACK COVER
    1. Temporarily install the bench type rear seatback cover to the bench type rear seatback pad.

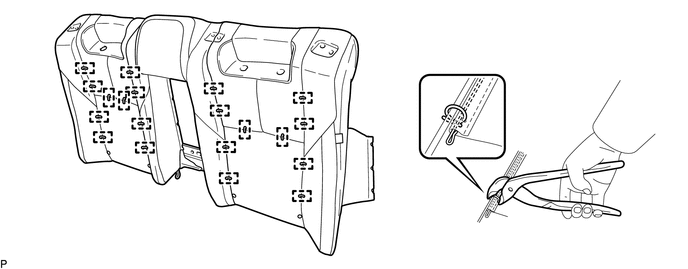

    2. Using hog ring pliers, install 20 new hog rings.
      GTY371215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the bench type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seatback cover.

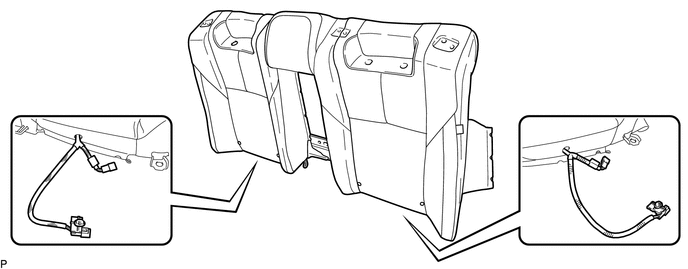

    3. w/ Seat Heater System:
      1. Pass the 2 wire harnesses through the bench type rear seatback cover.
        GTY574945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

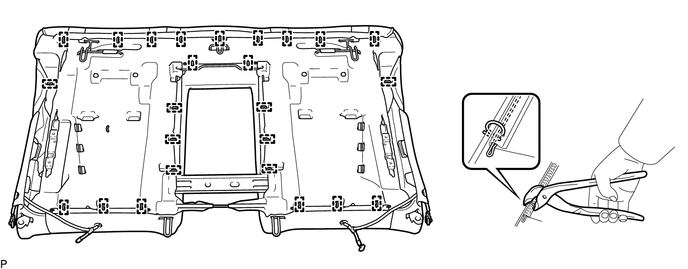

    4. Using hog ring pliers, install 25 new hog rings.
      GTY371213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the bench type rear seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the bench type rear seatback cover.

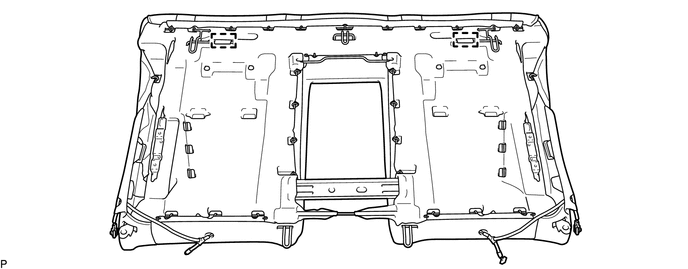

    5. Engage the 2 clamps to install the bench type rear seatback cover to the bench type rear seatback pad.
      GTY574932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/ Seat Heater System:

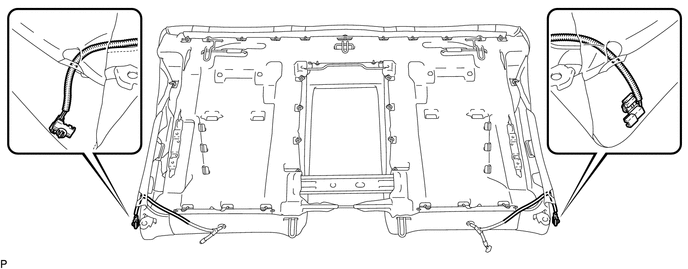

      1. Pass the 2 wire harnesses through the bench type rear seatback cover.
        GTY574931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)
    1. Engage the 4 claws to install the 2 rear seat headrest supports.
      GTY574928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)
    1. Engage the 4 claws to install the 2 rear seat headrest supports.
      GTY605645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT SHOULDER BELT GUIDE LH (for LH Side)
    1. Engage the guide.
      GTY574934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat shoulder belt guide LH with the 2 screws.

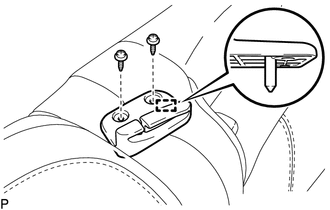

  9. INSTALL REAR SEAT SHOULDER BELT GUIDE LH (for Center)
    1. Engage the guide.
      GTY574929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat shoulder belt guide LH with the 2 screws.
  10. INSTALL REAR SEAT SHOULDER BELT GUIDE RH
    1. Engage the guide.
      GTY574930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat shoulder belt guide RH with the 2 screws.
  11. INSTALL REAR SEAT AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  12. INSTALL REAR SEAT AIRBAG ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  13. INSTALL REAR POWER OUTLET SOCKET COVER (w/ Power Outlet Socket)

    Refer to PROCEDURE - Step 1

  14. INSTALL REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY (w/ Power Outlet Socket)

    Refer to PROCEDURE - Step 2

  15. INSTALL REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY
    1. w/ Power Outlet Socket:
      1. Connect the connector.
    2. w/o Lid:

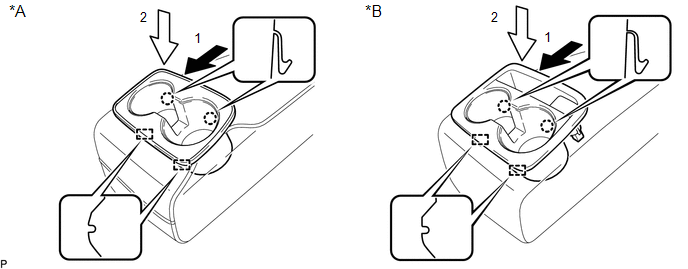

      1. Engage the 2 claws and 2 guides as indicated by the arrows, in the order shown in the illustration to install the rear center seat armrest cup holder sub-assembly.
        GTY476932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *A w/o Power Outlet Socket *B w/ Power Outlet Socket
    3. w/ Lid:
      1. Install the rear center seat armrest cup holder sub-assembly to the rear center seat armrest with the 2 screws.
        GTY574933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Clean the rear center seat armrest cup holder sub-assembly.
      3. Remove the release paper from a new seat armrest cup.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

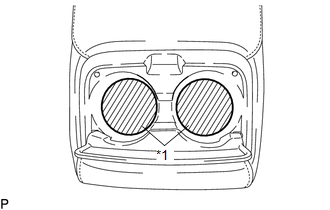

      4. Install 2 new seat armrest cups.
        GTY583780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Double-sided Tape
  16. INSTALL NO. 1 REAR CENTER SEAT ARMREST SPRING
    1. Engage the guide to install the No. 1 rear center seat armrest spring to the rear seat armrest handle.
      GTY605650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL GLOVE COMPARTMENT LOCK CYLINDER
    1. Engage the claw to install the glove compartment lock cylinder as shown in the illustration.
      GTY371175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the springs as shown in the illustration and engage the 2 claws to install the rear seat armrest handle.
      GTY382801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL CUSHION
    1. Engage the 2 claws to install the 2 cushions to the rear center seat armrest box.
      GTY574955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR CENTER SEAT ARMREST BOX ASSEMBLY

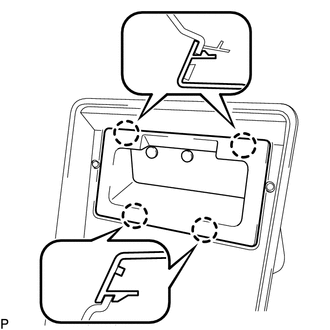

    1. Engage the 4 claws to install the rear center seat armrest box assembly.
      GTY605651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

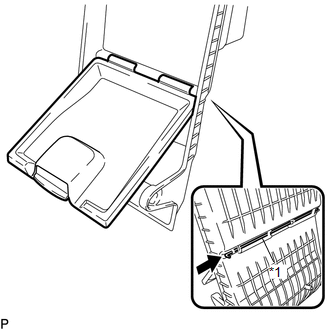

  20. INSTALL REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY
    1. Install the rear center seat armrest door sub-assembly with the rear center seat armrest wire to the rear center seat armrest box.
      GTY609225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Rear Center Seat Armrest Wire
  21. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY
    1. Install the rear center seat armrest assembly to the rear center seat armrest box assembly.
      GTY575389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

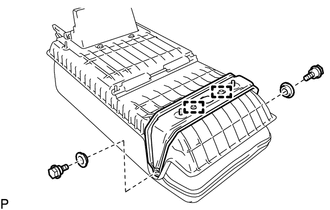

    2. Engage the 2 guides.
      GTY575339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seat armrest bracket sub-assembly with the 2 rear seatback protector shaft bushes and 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

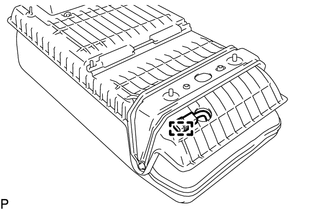

    4. w/ Power Outlet Socket:
      1. Engage the clamp.
        GTY539411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY WITH BOX

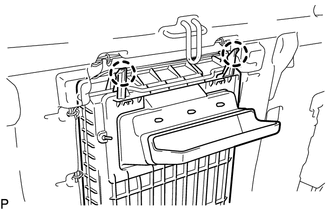

    1. Engage the 2 claws.
      GTY575341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

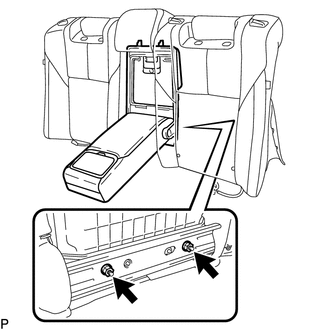

    2. Install the rear center seat armrest assembly with box with the 2 nuts.
      GTY605731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
