Disassembly [10/2014 - 10/2015]: Procedure

  1. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY WITH BOX
    1. Remove the 2 nuts.
      GTY605731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the rear center seat armrest assembly with box.
      GTY575341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY
    1. w/ Power Outlet Socket:
      1. Disengage the clamp.
        GTY539411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 rear seatback protector shaft bushes.
      GTY575339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the rear seat armrest bracket sub-assembly.
    4. Remove the rear center seat armrest assembly from the rear center seat armrest box assembly.
      GTY575389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY

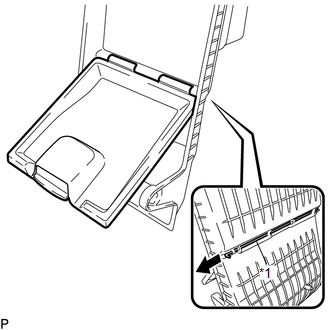

    1. Remove the rear center seat armrest wire and rear center seat armrest door sub-assembly from the rear center seat armrest box as shown in the illustration.
      GTY569073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Rear Center Seat Armrest Wire
  4. REMOVE REAR CENTER SEAT ARMREST BOX ASSEMBLY
    1. Disengage the 4 claws to remove the rear center seat armrest box assembly.
      GTY605651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CUSHION
    1. Disengage the 2 claws to remove the 2 cushions from the rear center seat armrest box.
      GTY574955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE GLOVE COMPARTMENT LOCK CYLINDER

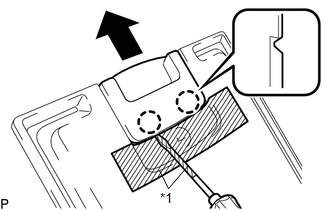

    1. Apply protective tape as shown in the illustration.
      GTY382780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws.
    3. Slide the rear seat armrest handle as shown in the illustration to remove it.

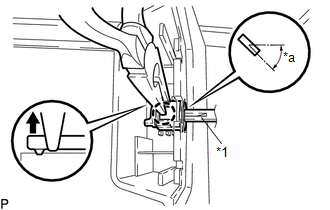

    4. Turn the key to the position shown in the illustration so that the key cannot be removed from the glove compartment lock cylinder.
      GTY372173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Key
      *a 45°
    5. Disengage the claw and remove the glove compartment lock cylinder together with the key.
  7. REMOVE NO. 1 REAR CENTER SEAT ARMREST SPRING
    1. Disengage the guide to remove the No. 1 rear center seat armrest spring from the rear seat armrest handle.
      GTY605650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY
    1. w/o Lid:

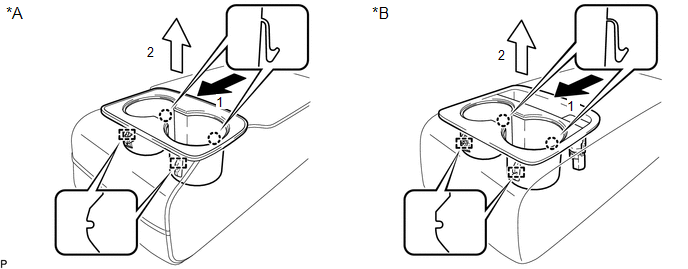

      1. Disengage the 2 claws and 2 guides as indicated by the arrows, in the order shown in the illustration to remove the rear center seat armrest cup holder sub-assembly.
        GTY576591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *A w/o Power Outlet Socket *B w/ Power Outlet Socket
    2. w/ Power Outlet Socket:
      1. Disconnect the connector.
    3. w/ Lid:
      1. Remove the 2 seat armrest cups.
        GTY583780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Double-sided Tape
      2. Remove the 2 screws and rear center seat armrest cup holder sub-assembly from the rear center seat armrest assembly.
        GTY574933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY (w/ Power Outlet Socket)

    Refer to PROCEDURE - Step 2

  10. REMOVE REAR POWER OUTLET SOCKET COVER (w/ Power Outlet Socket)

    Refer to PROCEDURE - Step 3

  11. REMOVE REAR SEAT AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  12. REMOVE REAR SEAT AIRBAG ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE REAR SEAT SHOULDER BELT GUIDE LH (for LH Side)
    1. Remove the 2 screws.
      GTY574934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the rear seat shoulder belt guide LH.
  14. REMOVE REAR SEAT SHOULDER BELT GUIDE LH (for Center)
    1. Remove the 2 screws.
      GTY574929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the rear seat shoulder belt guide LH.
  15. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
    1. Remove the 2 screws.
      GTY574930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the rear seat shoulder belt guide RH.
  16. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)
    1. Disengage the 4 claws and remove the 2 rear seat headrest supports.
      GTY574928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)
    1. Disengage the 4 claws and remove the 2 rear seat headrest supports.
      GTY605645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE BENCH TYPE REAR SEATBACK COVER
    1. w/ Seat Heater System:
      1. Pass the 2 wire harnesses through the bench type rear seatback cover.
        GTY574931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.
      GTY574932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

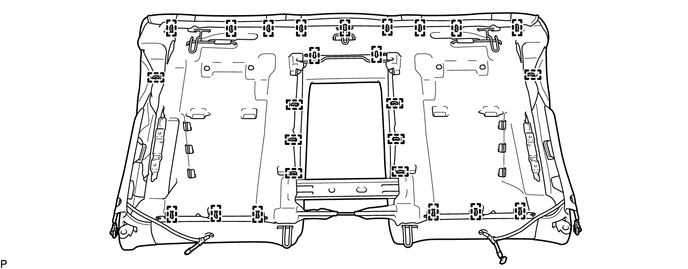

    3. Remove the 25 hog rings.
      GTY371211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Seat Heater System:
      1. Pass the 2 wire harnesses through the bench type rear seatback cover.
        GTY574945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

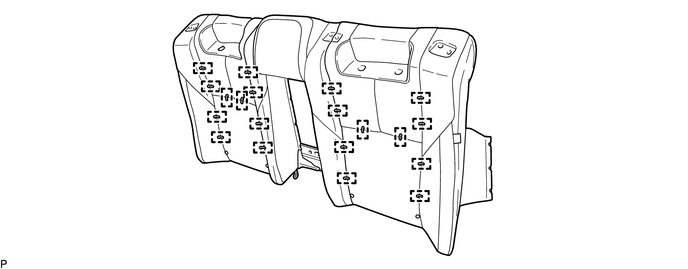

    5. Remove the 20 hog rings and bench type rear seatback cover from the bench type rear seatback pad.
      GTY371214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    See step  16

  20. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY
    1. Using a clip remover, remove the 2 clips.
      GTY574941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 16 hooks and remove the rear seat cushion frame sub-assembly.
      GTY574942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    1. w/ Rear Seat Cushion Mat:
      1. Remove the rear seat cushion mat.
        GTY605652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 hooks.
      GTY574940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

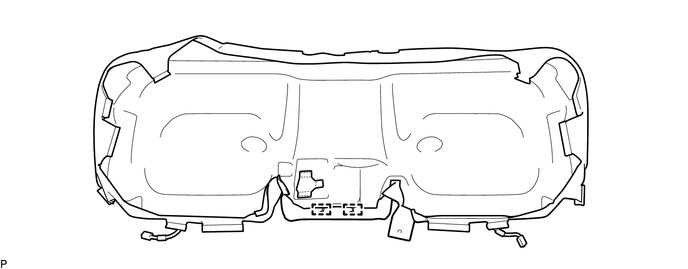

    3. Remove the 2 hog rings.
      GTY371220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Seat Heater System:
      1. Pass the 2 wire harnesses through the bench type rear seat cushion cover.
        GTY574966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

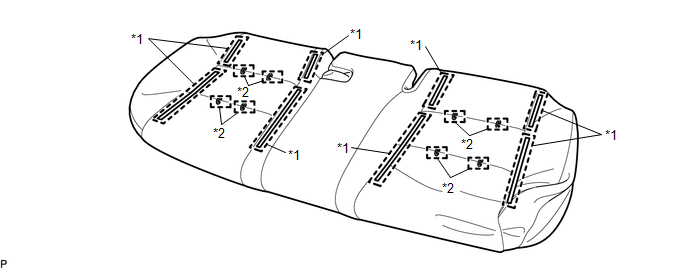

    5. Disengage the 8 fasteners and remove the 8 hog rings and bench type rear seat cushion cover from the rear seat cushion pad.
      GTY586442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fastener *2 Hog ring
  22. REMOVE SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    See step  4
