Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 4 and PROCEDURE - Step 4

  2. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 5 and PROCEDURE - Step 5

  3. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 7 and PROCEDURE - Step 7

  5. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 12 and PROCEDURE - Step 12

  6. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Using a T30 "TORX" socket wrench, remove the screw and front door courtesy light switch assembly.

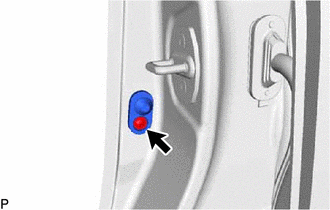

      GTY368720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
