Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  2. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

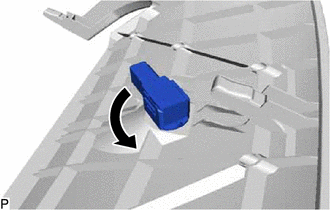

    1. Turn the No. 1 interior illumination light assembly as shown in the illustration to remove it.
      GTY368580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
