Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 2 and PROCEDURE - Step 2

  2. REMOVE INSTRUMENT PANEL CUP HOLDER
    1. Remove the 6 screws to remove the instrument panel cup holder.
      GTY569759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

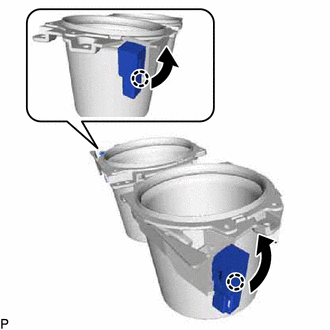

    1. Disengage the 2 claws to remove the 2 console box illumination light assemblies as shown in the illustration.
      GTY382373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
