Removal [10/2014 - ]: Procedure

  1. PRECAUTION

    (Refer to PRECAUTION [10/2014 - 10/2015] or PRECAUTION [10/2015 - ] )

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
  4. REMOVE LIGHT CONTROL ECU
    WARNING:

    The light control ECU may be hot when the light control switch is in the HEAD position or right after it is turned off. Check that the light control ECU is not hot before starting work.

    1. for LH Side:
      1. Disconnect the connector.

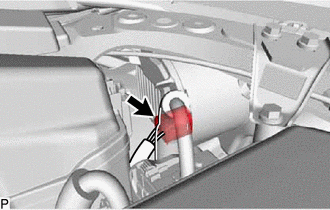

        GTY367158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for RH Side:
      1. Disconnect the connector.

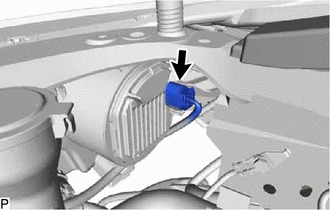

        GTY367160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the light control ECU (See step  3 See step  3).
  5. REMOVE DISCHARGE HEADLIGHT BULB

    See step  4 See step  4
