Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL
  4. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
    1. Disconnect the connector.

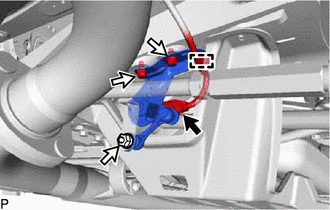

      GTY363215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and 2 bolts.
    3. Disengage the clamp to remove the rear height control sensor sub-assembly.
      NOTE:

      Do not drop the rear height control sensor sub-assembly. If it is dropped, replace it with a new one.
