Removal [10/2015 - ]: Procedure

  1. PRECAUTION (for HID Headlight)

    (Refer to PRECAUTION [10/2015 - ] )

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (for HID Headlight)
  4. REMOVE FRONT BUMPER ASSEMBLY

    (Refer to REMOVAL [10/2015 - ] )

  5. REMOVE HEADLIGHT ASSEMBLY
    1. Remove the 3 screws and bolt.
      GTY367135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Halogen Headlight:
      1. Disengage the clamp.
        GTY382146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 3 connectors to remove the headlight assembly.
    3. for HID Headlight:
      1. Disengage the clamp.
        GTY367134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 5 connectors to remove the headlight assembly.
    4. for LED Headlight:
      1. Disengage the 2 clamps.

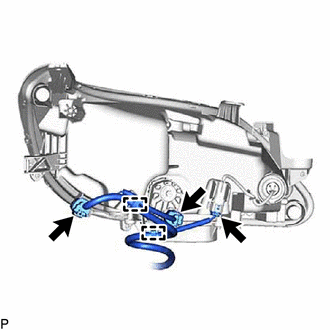

        GTY587085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 3 connectors to remove the headlight assembly.
